FEATURES

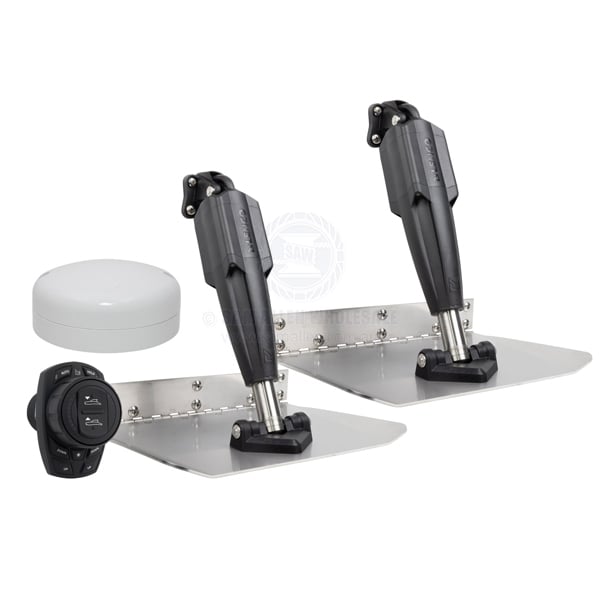

Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water. The original Trim Tab design, ideal for centre console fishing boats to cabin cruisers.
Kit Includes:
• 1 x Pro Control Auto Keypad (557032).
• 1 x Pro Control Auto IMU (557038).
• 2 x 12-gauge 304G (2.7mm) stainless steel electro-polished finish blades with 5/8 inch (16mm) flared edges.
• 2 x 2.25 inch Stroke SD Pro Actuators, 11-1/2 inch pin to pin (557054).
• 6 x Micro C Tee Connector (557088).
• Micro C Power Cable with fuse and ground (557072).
• 2 x 6ft Micro C Drop cables (557073), 1 x 15ft (557074) and 1 x 25ft (557076) Micro C Drop cables.
• 2 x 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (557080).
• 2 x 3ft (.91 m) Pro Control Actuator Power Pigtail (557082).
• 1 x Wake Signal Adapter for Non-Mercury Systems (557084).
• 2 x Corrosion proof Upper Mounting Brackets with gland seal (557064).
• 2 x Corrosion proof Lower Mounting Brackets (557066).
• Lenco 2K Backbone Kit.
SPECIFICATIONS
Part No. 557023
Series Pro Control Auto System - Standard Tab Kit
Keypad Auto
Volts (V) 12
Size L x W (in) 12 x 12
Size L x W (mm) 305 x 305
Hinge Height (mm) 51
Min. Transom Height (mm) 356
Approx. Boat Length (Mtr) 5.1 - 9.1
