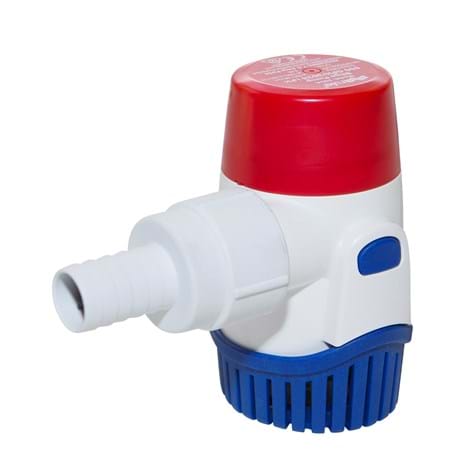

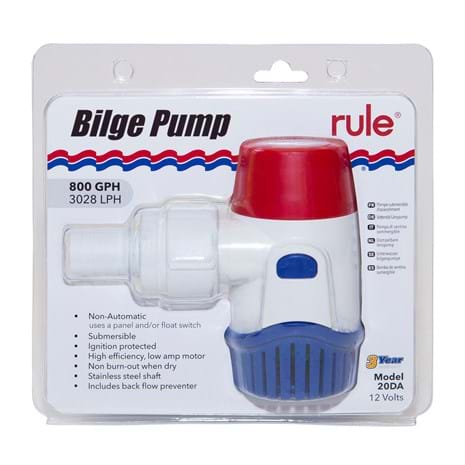

Next generation compact, high capacity 800GPH submersible electric bilge pumps.
Totally submersible pump with water cooled, ignition and TCO protected motor,
stainless steel shaft and snap-on strainer base.
This pump is extemely efficient, draws low current and offers high capacity output in
a very compact housing, to fi t into the smallest available space.
NON-Automatic pump - requires a Rule fl oat switch to operate automatically.
Please note - using the included check valve will reduce the output fl ow of the pump.
Available in both 12 volt & 24 volt models. 3 year limited warranty.
A Fully submersible pump - 800 US gallons per hour - 50 litres per minute
A Higher fl ow - optimised impeller to provide greater fl ow at the same amperage
as previous model
A High efficiency, low amp draw, ignition protected motor includes
true Electromagnetic suppression (EMC)
A 16 gauge tin coated copper electrical wiring with silicone infused
water blocking feature - to stop water wicking down inside the wiring
A Built-In thermal cut-out (TCO) in the motor provides additional
protection for pump & vessel
A Backflow prevention - now includes a removable check valve in the
discharge nozzle which reduces the amount of water draining back
from the pump discharge hose into the bilge.
Please note - using the check valve will reduce the rated output flow.
A Threaded discharge port - gives easier installation and maintenance.
Discharge hose port is included with each pump
A Hidden air vents in the pump prevent air locking in challenging
plumbing installations and helps with the check valve operation
A Compact - 112mm Height x 74mm Width x 64mm depth - not including discharge
A 3.4 amp draw @ 12v DC. 1.7 amp draw @ 24v DC
A Threaded hose outlet suits 20mm (3/4") hose. 1 x straight port provided
