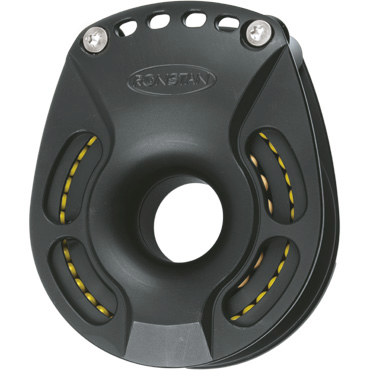

RF79109A - Orbit Blocks Series 75
Roll over image to zoom in Click on image to zoom
RF79109A - Orbit Blocks Series 75

RF79109A - Orbit Blocks Series 75

Save $268.65
Ronstan
Price:
$1,074.58 $1,343.23

Description

Orbit blocks are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio.
For comprehensive installation instructions see: Lashing Block Installation Instructions

Orbit blocks are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio. For comprehensive installation instructions see: Lashing Block Installation Instructions
Sheave Ø 80 mm
Max. Rope Ø 14 mm
Max. Cable Ø mm
Pin Ø - mm
M.W.L.3100 kg
B. L.7750 kg
Weight310 g
