RF69108 - Orbit Blocks Series 60
Roll over image to zoom in Click on image to zoom
RF69108 - Orbit Blocks Series 60

RF69108 - Orbit Blocks Series 60

Save $110.88
Ronstan
Price:
$443.51 $554.39

Description

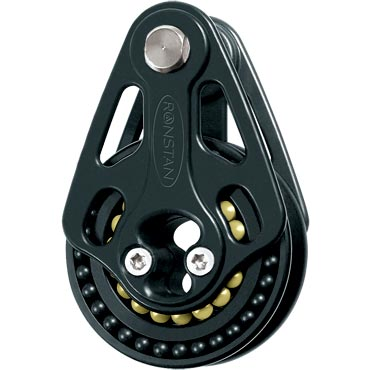

Orbit blocks are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio.
Halyard blocks are used in applications with a fixed line entry-angle to keep lines close to the deck as they lead aft to organisers and winches. Halyard block has a removable pin for attachment to deck padeyes or mast collar.

Orbit blocks are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio. Halyard blocks are used in applications with a fixed line entry-angle to keep lines close to the deck as they lead aft to organisers and winches. Halyard block has a removable pin for attachment to deck padeyes or mast collar.
Sheave Ø 60 mm
Max. Rope Ø 12 mm
Max. Cable Ø - mm
Pin Ø 9.0* mm
M.W.L.1800 kg
B. L.4000 kg
Weight160 g
