Description

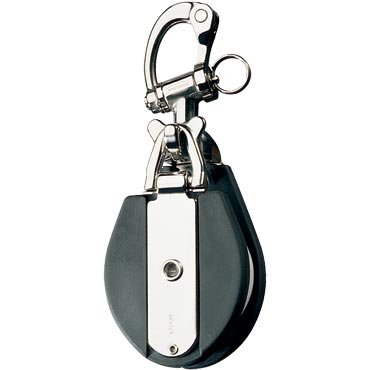

Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360 °. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts; RF6261 Replacement Plunger Pint Kit
Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts; RF6261 Replacement Plunger Pint Kit
Sheave Ø 64 mm
Max. Rope Ø 12 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L.850 kg
B. L.1700 kg
Weight510 g
Max. Rope Ø 12 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L.850 kg
B. L.1700 kg
Weight510 g
