Description

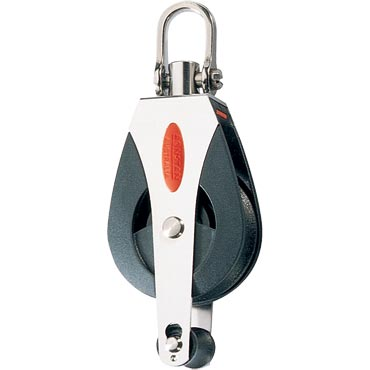

Sheaves running on Acetal or Torlon ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
Sheaves running on Acetal or Torlon ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
Sheave Ø 40 mm
Max. Rope Ø 10 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L.350 kg
B. L.1000 kg
Weight79 g
Max. Rope Ø 10 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L.350 kg
B. L.1000 kg
Weight79 g
