Description

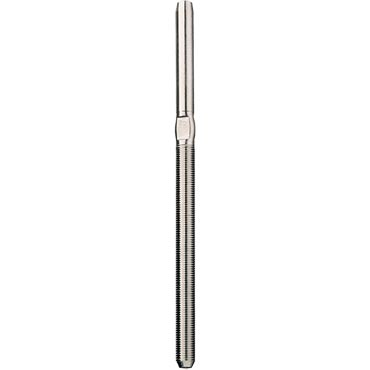

Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
* Threaded swage terminal BL is below the typical BL of grade 1570, 1x19 stainless steel wire.
Threaded swage terminals up to and including 7/8" UNF have rolled right hand threads to maximise strength.
* Threaded swage terminal BL is below the typical BL of grade 1570, 1x19 stainless steel wire.
Cable Ø 5.0 mm
Suits TurnbuckleRF1480-04, RF1481-04
Thread 1/4" UNF
A7.5 mm
B32 mm
C129 mm
D74 mm
E9.1 mm
Weight30 g
Suits TurnbuckleRF1480-04, RF1481-04
Thread 1/4" UNF
A7.5 mm
B32 mm
C129 mm
D74 mm
E9.1 mm
Weight30 g
