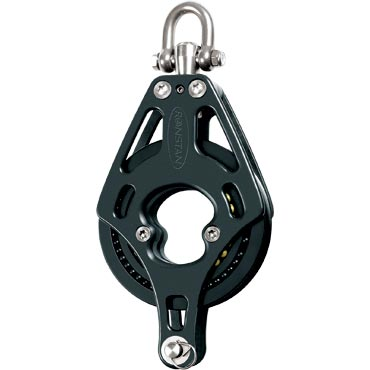

RF109110 - Orbit Blocks Series 100
Roll over image to zoom in Click on image to zoom
RF109110 - Orbit Blocks Series 100

RF109110 - Orbit Blocks Series 100

Save $199.95
Ronstan
Price:
$799.82 $999.77

Description

Orbit blocks are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio.
Head posts of swivel blocks can be locked at 0 or 90 degrees.

Orbit blocks are a no-compromise product range developed to meet the demands and expectations of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio. Head posts of swivel blocks can be locked at 0 or 90 degrees.
Sheave Ø 100 mm
Max. Rope Ø 14 mm
Max. Cable Ø - mm
Pin Ø 8.0 mm
M.W.L.3000 kg
B. L.6500 kg
Weight530 g
