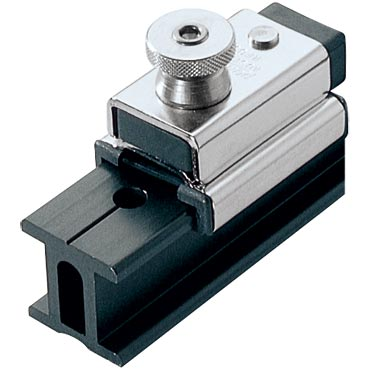

RC63283 - Series 32, Track
Roll over image to zoom in Click on image to zoom
RC63283 - Series 32, Track

RC63283 - Series 32, Track

Save $15.30
Ronstan
Price:
$80.30 $95.60

Description

TRACK FASTENINGS - To suit 6mm (1/4") countersunk fasteners at 100mm (3 15/16") centres.
STOP HOLES - 50mm (2") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
MINIMUM CURVE RADIUS
For 76mm (3") car. Min horizontal 'A' curve radius = 500mm (20"). Min horizontal 'B' curve radius = 500mm (20").
For 157mm (6 3/16") car. Min horizontal 'A' curve radius = 500mm (20"). Min horizontal 'B' curve radius = not suitable.

TRACK FASTENINGS - To suit 6mm (1/4") countersunk fasteners at 100mm (3 15/16") centres. STOP HOLES - 50mm (2") centres. Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners MINIMUM CURVE RADIUS For 76mm (3") car. Min horizontal 'A' curve radius = 500mm (20"). Min horizontal 'B' curve radius = 500mm (20"). For 157mm (6 3/16") car. Min horizontal 'A' curve radius = 500mm (20"). Min horizontal 'B' curve radius = not suitable.
Length64 mm
Width- mm
Weight180 g
