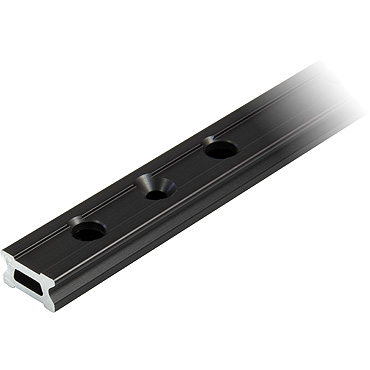

RC1190-2.0 - Series 19, Track
Roll over image to zoom in Click on image to zoom
RC1190-2.0 - Series 19, Track

RC1190-2.0 - Series 19, Track

Save 16%
RonstanSKU: Ronstan-RC1190-2.0
No reviews
Price:
$166.66 $198.40

Description

TRACK FASTENINGS - 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres
STOP HOLES - 50mm (1 31/32") centres
MINIMUM CURVE RADIUS
For 50mm (1 31/32") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59").
For 57mm (2 1/4") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59").
For 70mm (2 3/4") car. Min horizontal 'A' curve radius = 2500mm (99"). Min horizontal 'B' curve radius = 3000mm (118").
For 85mm (3 11/32") car. Min horizontal 'A' curve radius = 3500mm (138"). Min horizontal 'B' curve radius = 4500mm (177").
For 100mm (3 15/16") car. Min horizontal 'A' curve radius = 5000mm (197"). Min horizontal 'B' curve radius = 5500mm (217").
For 148mm (5 27/32") car. Min horizontal 'A' curve radius = 11000mm (433"). Min horizontal 'B' curve radius = 15000mm (591"). Standard low profile track has stop holes to accept cars with plunger stops.

TRACK FASTENINGS - 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres STOP HOLES - 50mm (1 31/32") centres MINIMUM CURVE RADIUS For 50mm (1 31/32") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59"). For 57mm (2 1/4") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59"). For 70mm (2 3/4") car. Min horizontal 'A' curve radius = 2500mm (99"). Min horizontal 'B' curve radius = 3000mm (118"). For 85mm (3 11/32") car. Min horizontal 'A' curve radius = 3500mm (138"). Min horizontal 'B' curve radius = 4500mm (177"). For 100mm (3 15/16") car. Min horizontal 'A' curve radius = 5000mm (197"). Min horizontal 'B' curve radius = 5500mm (217"). For 148mm (5 27/32") car. Min horizontal 'A' curve radius = 11000mm (433"). Min horizontal 'B' curve radius = 15000mm (591"). Standard low profile track has stop holes to accept cars with plunger stops.
Length1996 mm
Width19.0 mm
Weight620 g
