Description

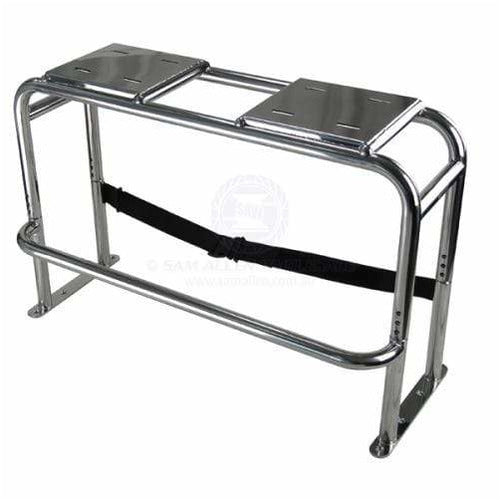

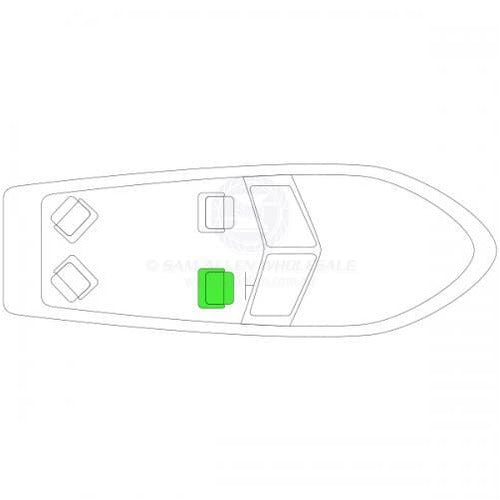

• The Relaxn double seat frame is designed for the centre console boat market.
• The seat frame is designed as a space saver which economically utilises space under the frame.

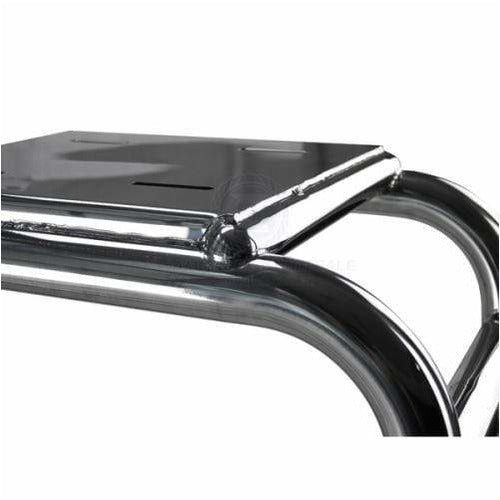

• Heavy-duty highly polished 32mm 304G stainless steel frame.
• Adjustable height in 20mm increments provides perfect seat positioning.
• Footrest bar also doubles as a cooler box holder.
• 50mm stainless steel saddles with a polyester strap, quick release buckle and velcro adjustment.

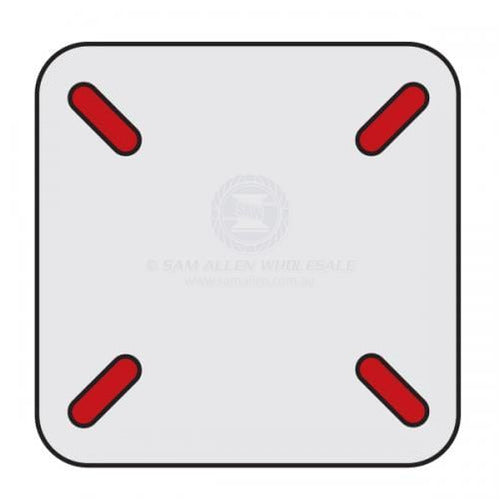

• Mounting holes - 8 x 8mm countersunk.
• Patented - Australian Registered Design.

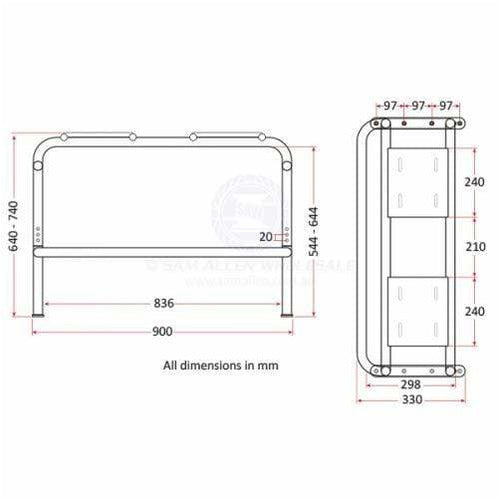

Part No. | 293819 |
Overall Dimensions (H) | 640mm to 740mm |
Mount Screws | 8mm c/s |
Inner Dimensions (L x W) | 836mm x 298mm |
Inner Dimensions (H) | 544mm to 644mm |
Overall Dimensions (L x W) | 900mm x 330mm |
Note | The 293804 slide mounts are recommended for slide adustments on the Relaxn Double SpaceFrame. |
