Description

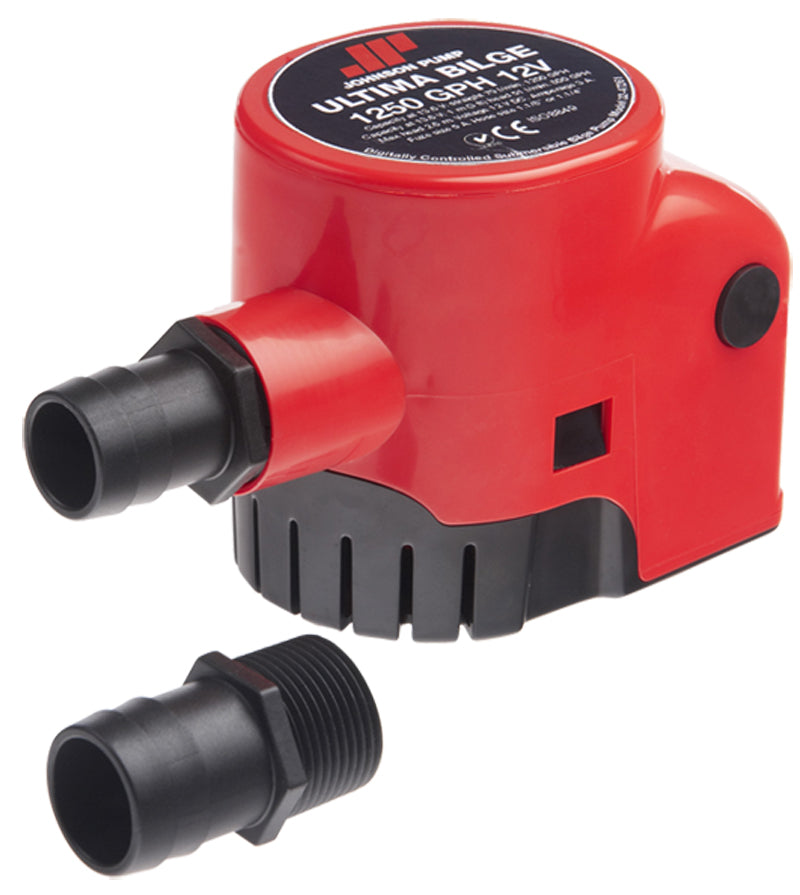

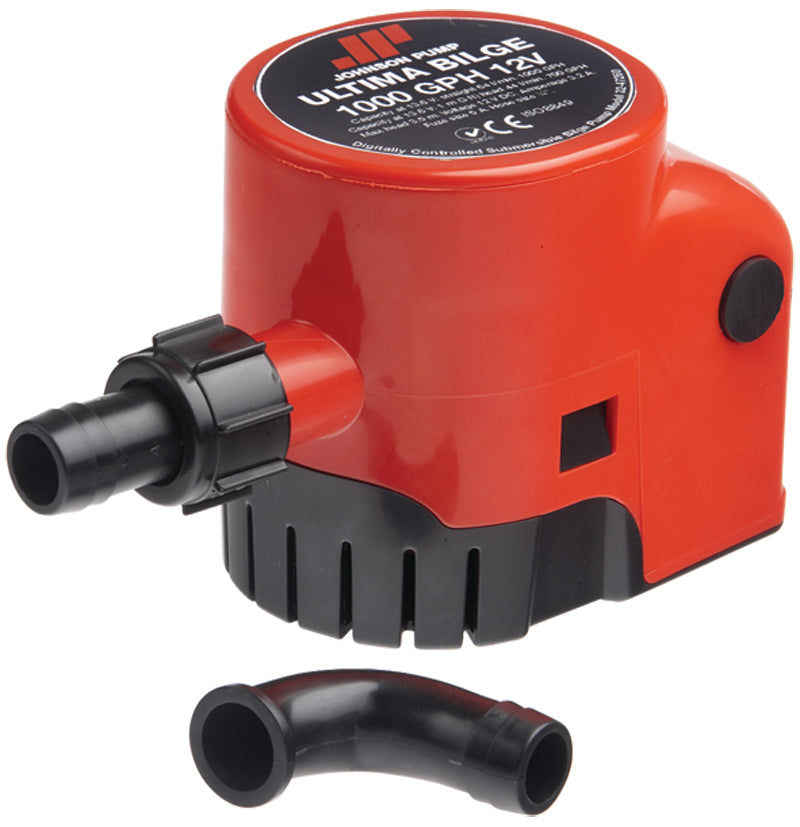

Sleek, reliable and compact unit with integrated electronic float switch, ready to install and run for years and years of unerring service. Available in 600, 800, 1000 and 1250GPH versions. Voltage 12v DC. For 600, to 1000GPH we have easy to install Dura-Port discharge ports to eliminate stress cracking caused by over tightened hose clamps. The pumps are delivered including both a straight and a 90° smooth elbow Dura-Port and a removable check valve. 600, 800 & 1000GPH Pumps are 142mm long x 82mm wide x 105mm high, 1250GPH Pump is 142mm long x 82mm wide x 117mm High
| Code | Description | Capacity at 1.0m Head (13.6v) | Capacity Zero Head (13.6v) | Amperage | Fuse Size | Connection |
| 184080 | 600GPH Ultima Bilge Pump 12v | 32Lpm - 500Gph | 38Lpm - 600GPH | 2.5A | 5A | 3/4” |
| 184082 | 800GPH Ultima Bilge Pump 12v | 38Lpm - 600GPH | 51Lpm - 800GPH | 3A | 5A | 3/4” |
| 184084 | 1000GPH Ultima Bilge Pump 12v | 44Lpm - 700GPH | 64Lpm - 1000GPH | 3.2A | 5A | 3/4” |
| 184086 | 1250GPH Ultima Bilge Pump 12v | 51Lpm - 800GPH | 79Lpm - 1250GPH | 3A | 5A | 1 1/8” |
