Description

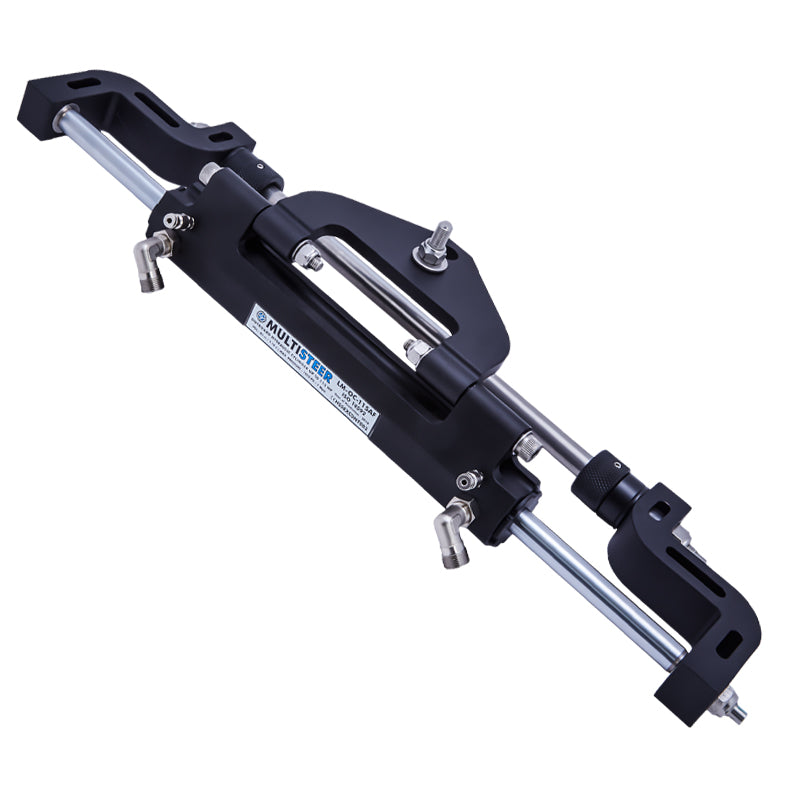

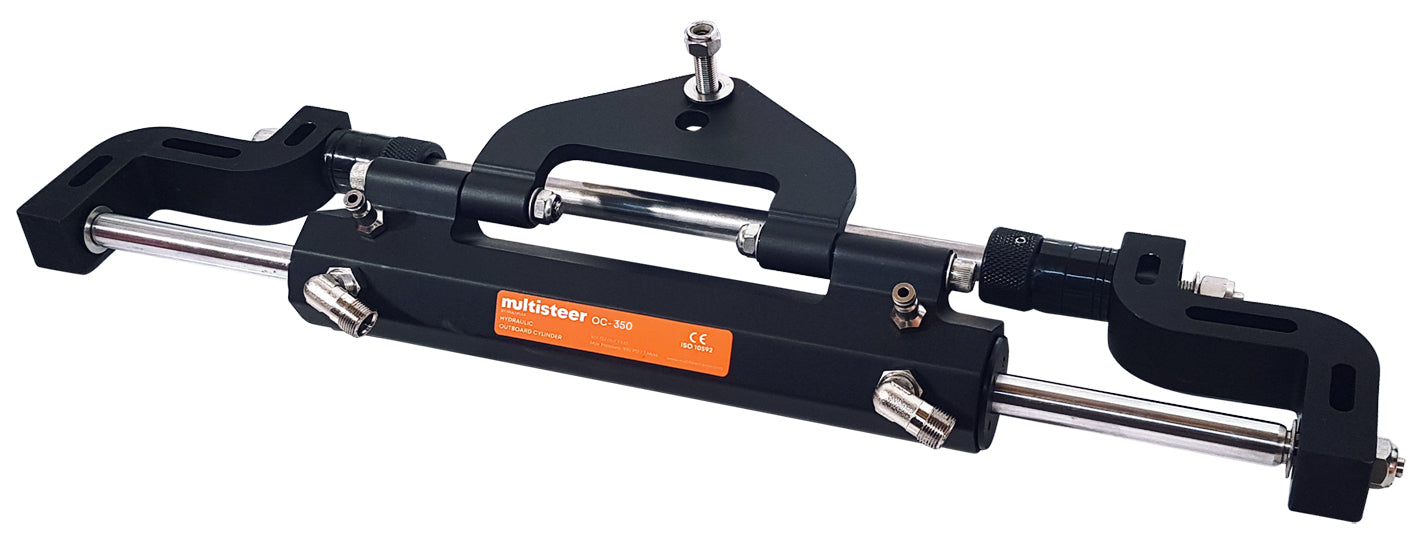

● Balanced Cylinder: The number of turns lock to lock are equal from port to starboard ● 316 Stainless Steel Hard Chrome plated piston rod, support rod and fasteners ● Tube, Tiller Plate and support brackets are made of high quality anodized aluminium with ultimate tensile strength ● Includes a pair of 90° adjustable chrome plated brass elbows to connect to industry standard 5/16”hose ● Supplied with brass nickel chrome plated adjustable elbow fittings with built in O ring which can be easily adapted in any direction ● Installation for single or twin engines ● Compatible to use with all MULTISTEER Helms
| Code | Model No. | Application | Volume | Output Force kg | Port Threads |
| 712462 | LM-OC-250AF | For Engines up to 175hp | 122cc | 422 | 9/16” |
| 712464 | LM-OC-350AF | For Engines up to 350hp | 166cc | 573 | 9/16” |
