Description

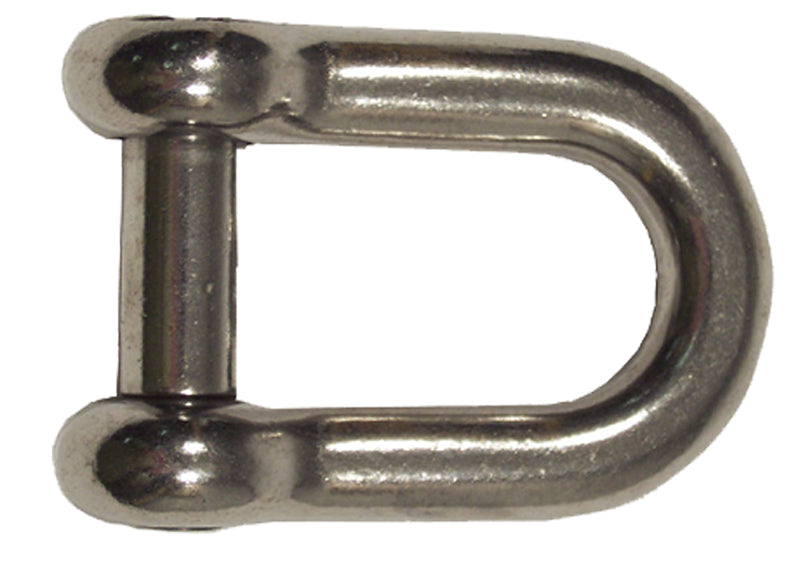

316 Grade S/S slot head “D” shackles. The screw head is completely inside the body of the shackle. Available bulk or packed for easy display
| Code | Dia. (mm) | TDL | A | B | D | L1 | L2 |
| SS360C-06 | 6mm | 550kg | 6mm | 12mm | 12mm | 21mm | 35mm |
| SS360C-07 | 7mm | 720kg | 7mm | 14mm | 13mm | 24mm | 42mm |
| SS360C-08 | 8mm | 1120kg | 8mm | 17mm | 15.6mm | 28mm | 47mm |
| SS360C-10 | 10mm | 1600kg | 10mm | 21mm | 20mm | 35mm | 59mm |
