Description
304 Grade stainless steel anchor devices, with quick release captive pin to retain rope or chain on roller.
| Code | Description | Nominal Mount Area L x W | Internal Width | Vertical Opening At Pin | Replacement Bow Roller | Replacement Nose Roller | Replacement Pin Kit |
| 408611 | 4” S/S Anchor Device - Red Rollers | 100 x 50mm | 52mm | 63mm | 761106 | 761105 | 402226 |
| 408612 | 4” S/S Anchor Device - Black Rollers | 100 x 50mm | 52mm | 63mm | 408619 | 408618 | 402226 |
| 408613 | 6” S/S Anchor Device - Red Rollers | 150 x 50mm | 52mm | 63mm | 761106 | 761105 | 402226 |

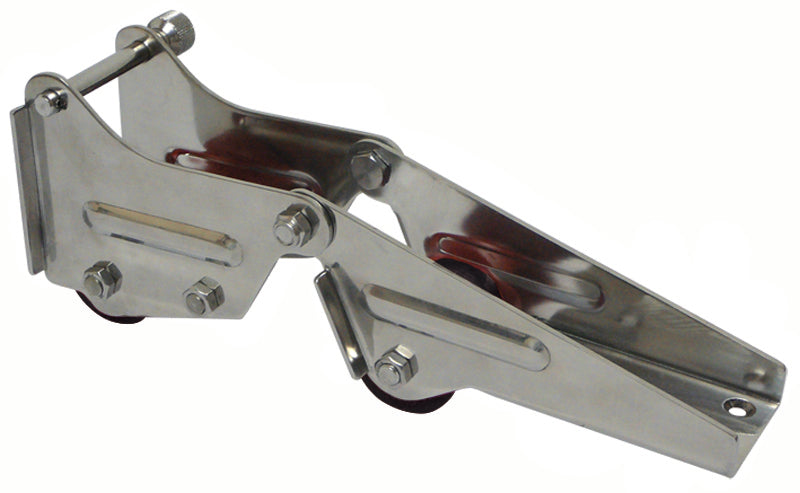

| 408615 | 6” S/S Anchor Device - Black Rollers | 150 x 50mm | 52mm | 63mm | 408619 | 408618 | 402226 |

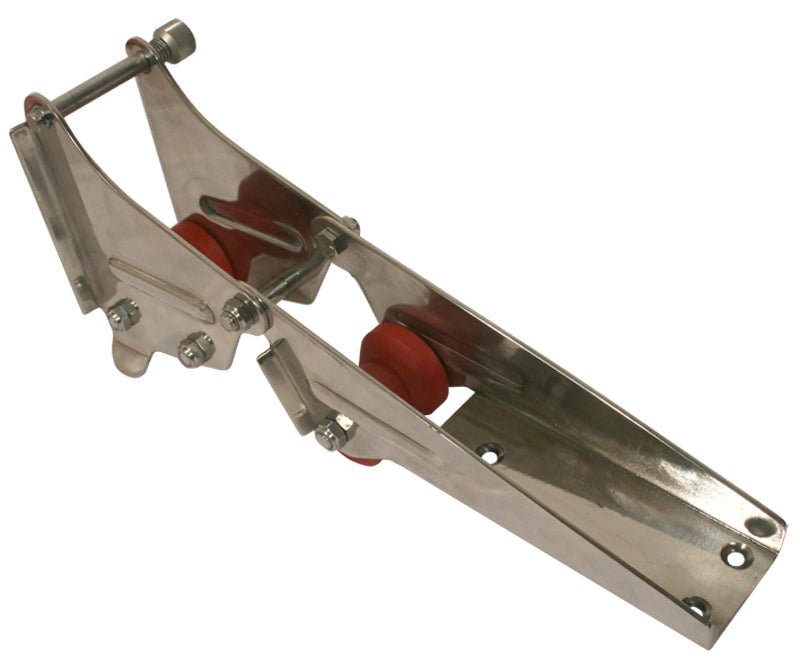

| 408622 | 6” S/S Bow Roller - Black Roller | 150 x 50mm | 52mm | 90mm | 761106 | 761105 | 402226 |

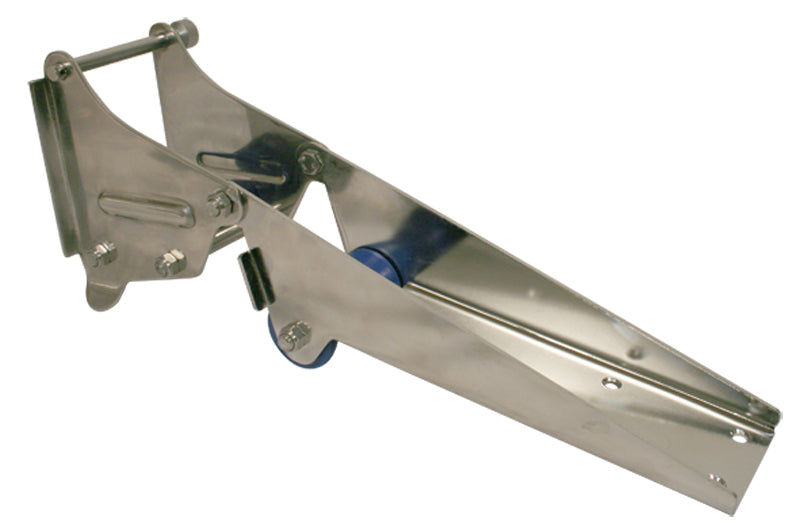

| 408623 | 9” Extra Wide Anchor Device - Blue Rollers | 235 x75mm | 80mm | 100mm | 760408 | 760407 | 402235 |
