Description
Features

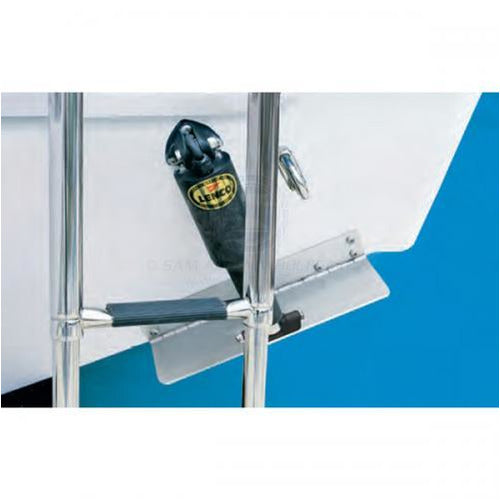

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht.
Kit Includes:
• 2 x 12 volt XDS actuators with 1.8m cable and Deutsch connectors.
• 2 x actuator extension wiring harness (6m) Deutsch connectors.
• 2 x stainless steel electropolished, limited space plates with welded on lower mount bracket 5/16" hole.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x XD lower mounting bracket.
• Compliance: CE Certified .
• 5 Year Warranty (Recreational Use).

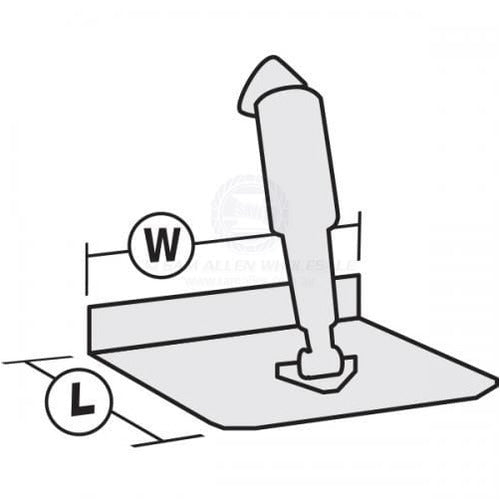

| Length | 9" (228mm) |
| Width | 12" (305mm) |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 4.9Mtr - 7.6Mtr |
| Finish | Electro Polished |
| Switch Kit | LED Indicator |
| Volts | 12V |
| Hinge Height | 51mm |
| Note | 24 Volt Option Available. |
