Description

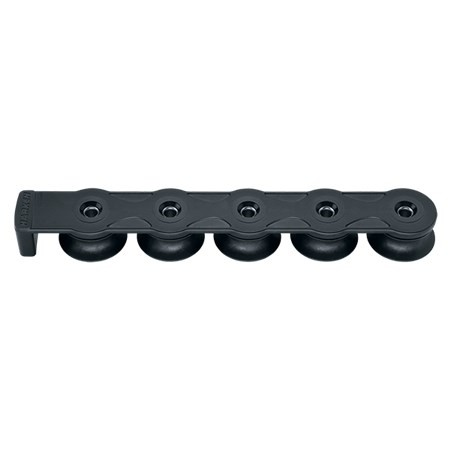

Harken deck organizers lead halyards and control lines aft, allowing crew to sail from the security of the cockpit. The injection-molded composite top plate provides superior impact and UV resistance. Asymmetrical sheaves of glass-filled nylon have flared bases to lift lines up and off the deck, and combine with a proven bearing system to reduce friction. Deck organizers stack for additional configurations.
Sheave Ø(mm)50 mm
Sheave Ø(in)1 15/16 in
Length (mm)303 mm
Length (in)11 15/16 in
Height (mm)31 mm
Height (in)1 7/32 in
Weight (g)325 g
Weight (oz)11.46 oz
Maximum line Ø(mm)16 mm
Maximum line Ø(in)5/8 in
Maximum working load/sheave (kg)1180 kg
Maximum working load/sheave (lb)2602 lb
Fasteners (mm)8 FH mm
Fasteners (in)5/16 FH in
Sheave Ø(in)1 15/16 in
Length (mm)303 mm
Length (in)11 15/16 in
Height (mm)31 mm
Height (in)1 7/32 in
Weight (g)325 g
Weight (oz)11.46 oz
Maximum line Ø(mm)16 mm
Maximum line Ø(in)5/8 in
Maximum working load/sheave (kg)1180 kg
Maximum working load/sheave (lb)2602 lb
Fasteners (mm)8 FH mm
Fasteners (in)5/16 FH in
