Description

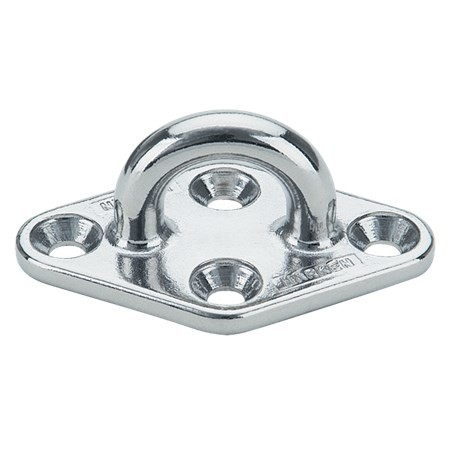

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken ® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.
A (mm)98 mm
A (in)3 7/8 in
B (mm)59 mm
B (in)2 5/16 in
C (mm)73 mm
C (in)2 7/8 in
D (mm)35 mm
D (in)1 3/8 in
E (mm)40 mm
E (in)1 9/16 in
F (mm)22 mm
F (in) 7/8 in
G (mm)27 mm
G (in)1 1/16 in
Weight (g)213 g
Weight (oz)7.5 oz
Maximum Working Load - angle 1 (kg)3855 kg
Maximum Working Load - angle 1 (lb)8500 lb
Maximum Working Load - angle 2 (kg)3628 kg
Maximum Working Load - angle 2 (lb)8000 lb
Maximum Working Load - angle 3 (kg)3540 kg
Maximum Working Load - angle 3 (lb)7800 lb
Breaking load - angle 1 (kg)8618 kg
Breaking load - angle 1 (lb)19000 lb
Breaking load - angle 2 (kg)7800 kg
Breaking load - angle 2 (lb)17200 lb
Breaking load - angle 3 (kg)7075 kg
Breaking load - angle 3 (lb)15600 lb
Fasteners (mm)8 FH mm
Fasteners (in)5/16 FH in
A (in)3 7/8 in
B (mm)59 mm
B (in)2 5/16 in
C (mm)73 mm
C (in)2 7/8 in
D (mm)35 mm
D (in)1 3/8 in
E (mm)40 mm
E (in)1 9/16 in
F (mm)22 mm
F (in) 7/8 in
G (mm)27 mm
G (in)1 1/16 in
Weight (g)213 g
Weight (oz)7.5 oz
Maximum Working Load - angle 1 (kg)3855 kg
Maximum Working Load - angle 1 (lb)8500 lb
Maximum Working Load - angle 2 (kg)3628 kg
Maximum Working Load - angle 2 (lb)8000 lb
Maximum Working Load - angle 3 (kg)3540 kg
Maximum Working Load - angle 3 (lb)7800 lb
Breaking load - angle 1 (kg)8618 kg
Breaking load - angle 1 (lb)19000 lb
Breaking load - angle 2 (kg)7800 kg
Breaking load - angle 2 (lb)17200 lb
Breaking load - angle 3 (kg)7075 kg
Breaking load - angle 3 (lb)15600 lb
Fasteners (mm)8 FH mm
Fasteners (in)5/16 FH in
