Description

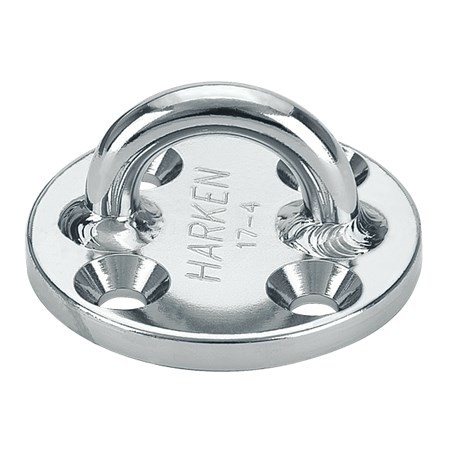

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.
A (mm)76 mm
A (in)3 in
C (mm)33 mm
C (in)1 5/16 in
D (mm)40 mm
D (in)1 9/16 in
E (mm)50 mm
E (in)1 15/16 in
F (mm)29 mm
F (in)1 1/8 in
G (mm)37 mm
G (in)1 7/16 in
Weight (g)312 g
Weight (oz)11 oz
Maximum Working Load - angle 1 (kg)5358 kg
Maximum Working Load - angle 1 (lb)11800 lb
Maximum Working Load - angle 2 (kg)4705 kg
Maximum Working Load - angle 2 (lb)10375 lb
Maximum Working Load - angle 3 (kg)3855 kg
Maximum Working Load - angle 3 (lb)8500 lb
Breaking load - angle 1 (kg)10716 kg
Breaking load - angle 1 (lb)23600 lb
Breaking load - angle 2 (kg)9430 kg
Breaking load - angle 2 (lb)20750 lb
Breaking load - angle 3 (kg)7710 kg
Breaking load - angle 3 (lb)17000 lb
Fasteners (mm)10 FH mm
Fasteners (in)3/8 FH in
A (in)3 in
C (mm)33 mm
C (in)1 5/16 in
D (mm)40 mm
D (in)1 9/16 in
E (mm)50 mm
E (in)1 15/16 in
F (mm)29 mm
F (in)1 1/8 in
G (mm)37 mm
G (in)1 7/16 in
Weight (g)312 g
Weight (oz)11 oz
Maximum Working Load - angle 1 (kg)5358 kg
Maximum Working Load - angle 1 (lb)11800 lb
Maximum Working Load - angle 2 (kg)4705 kg
Maximum Working Load - angle 2 (lb)10375 lb
Maximum Working Load - angle 3 (kg)3855 kg
Maximum Working Load - angle 3 (lb)8500 lb
Breaking load - angle 1 (kg)10716 kg
Breaking load - angle 1 (lb)23600 lb
Breaking load - angle 2 (kg)9430 kg
Breaking load - angle 2 (lb)20750 lb
Breaking load - angle 3 (kg)7710 kg
Breaking load - angle 3 (lb)17000 lb
Fasteners (mm)10 FH mm
Fasteners (in)3/8 FH in
