Description

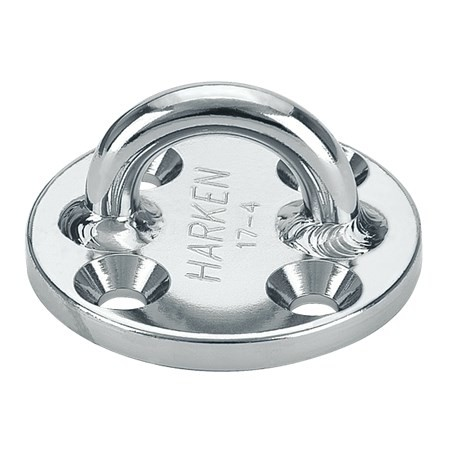

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.
A (mm)57 mm
A (in)2 1/4 in
C (mm)27 mm
C (in)1 1/16 in
D (mm)30 mm
D (in)1 3/16 in
E (mm)30 mm
E (in)1 3/16 in
F (mm)16 mm
F (in) 5/8 in
G (mm)24 mm
G (in) 1 5/16 in
Weight (g)118 g
Weight (oz)4.16 oz
Maximum Working Load - angle 1 (kg)2270 kg
Maximum Working Load - angle 1 (lb)5000 lb
Maximum Working Load - angle 2 (kg)2040 kg
Maximum Working Load - angle 2 (lb)4500 lb
Maximum Working Load - angle 3 (kg)1950 kg
Maximum Working Load - angle 3 (lb)4300 lb
Breaking load - angle 1 (kg)4535 kg
Breaking load - angle 1 (lb)10000 lb
Breaking load - angle 2 (kg)4080 kg
Breaking load - angle 2 (lb)9000 lb
Breaking load - angle 3 (kg)3900 kg
Breaking load - angle 3 (lb)8600 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
A (in)2 1/4 in
C (mm)27 mm
C (in)1 1/16 in
D (mm)30 mm
D (in)1 3/16 in
E (mm)30 mm
E (in)1 3/16 in
F (mm)16 mm
F (in) 5/8 in
G (mm)24 mm
G (in) 1 5/16 in
Weight (g)118 g
Weight (oz)4.16 oz
Maximum Working Load - angle 1 (kg)2270 kg
Maximum Working Load - angle 1 (lb)5000 lb
Maximum Working Load - angle 2 (kg)2040 kg
Maximum Working Load - angle 2 (lb)4500 lb
Maximum Working Load - angle 3 (kg)1950 kg
Maximum Working Load - angle 3 (lb)4300 lb
Breaking load - angle 1 (kg)4535 kg
Breaking load - angle 1 (lb)10000 lb
Breaking load - angle 2 (kg)4080 kg
Breaking load - angle 2 (lb)9000 lb
Breaking load - angle 3 (kg)3900 kg
Breaking load - angle 3 (lb)8600 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
