Description

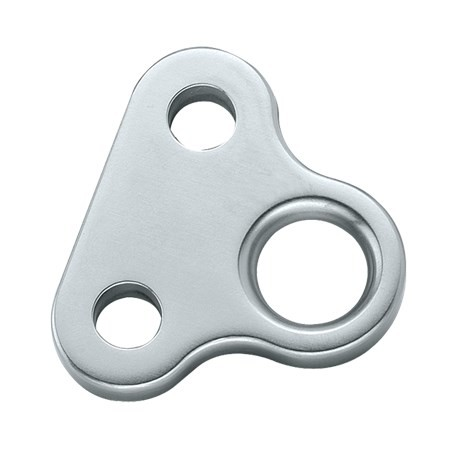

Stainless steel tack adapter tangs are used to adapt pin diameters on headstays to the standard clevis pin size that comes on the Harken Small Boat underdeck furling unit. A third hole accepts lashing to adjust jib luff tension.
Tang hole to tang hole length (mm)35 mm
Tang hole to tang hole length (in)1 3/8 in
Maximum luff wire Ø(mm)4 mm
Maximum luff wire Ø(in)5/32 in
Length (in)2 3/8 in
Length (mm)60 mm
Width (in)2 in
Width (mm)51 mm
Upper pin Ø(mm)8 mm
Upper pin Ø(in)5/16 in
Lower pin Ø(mm)8 mm
Lower pin Ø(in)5/16 in
Weight (g)91 g
Weight (oz)3.2 oz
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb
Use with furling unit493
Tang hole to tang hole length (in)1 3/8 in
Maximum luff wire Ø(mm)4 mm
Maximum luff wire Ø(in)5/32 in
Length (in)2 3/8 in
Length (mm)60 mm
Width (in)2 in
Width (mm)51 mm
Upper pin Ø(mm)8 mm
Upper pin Ø(in)5/16 in
Lower pin Ø(mm)8 mm
Lower pin Ø(in)5/16 in
Weight (g)91 g
Weight (oz)3.2 oz
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb
Use with furling unit493
