Description

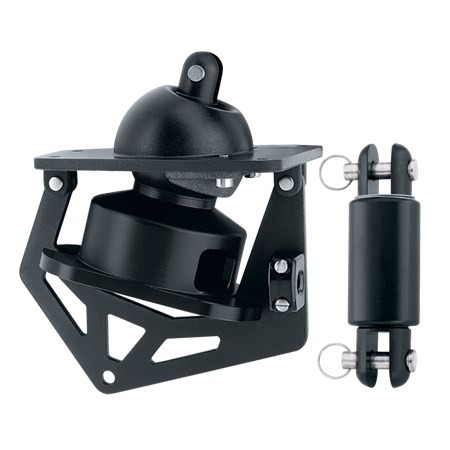

Includes drum and upper swivel. Does not include hoistable swivel.
Pin-to-pin length (mm)156 mm
Pin-to-pin length (in)6 1/8 in
Drum Ø(mm)79 mm
Drum Ø(in)3 1/8 in
Minimum line Ø(mm)3 mm
Minimum line Ø(in)1/8 in
Maximum line Ø(mm)4 mm
Maximum line Ø(in)5/32 in
Jaw width (mm)8 mm
Jaw width (in) 5/16 in
Maximum luff wire Ø(mm)3 mm
Maximum luff wire Ø(in) 1/8 in
Clevis pin Ø(mm)6.4 mm
Clevis pin Ø(in)1/4 in
Weight (g)661 g
Weight (oz)23.3 oz
Maximum working load (kg)431 kg
Maximum working load (lb)950 lb
FootnoteIncludes drum and upper swivel. Does not include hoistable swivel.
