Description

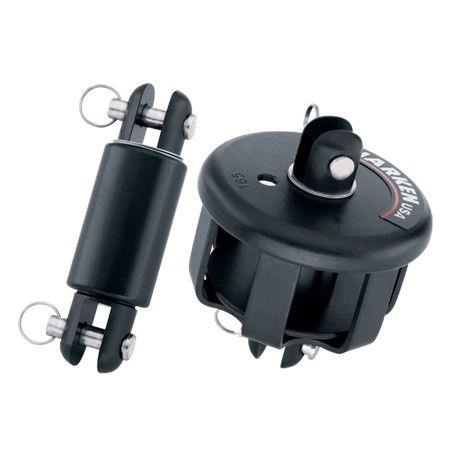

Includes drum and upper swivel. Does not include hoistable swivel.
Pin-to-pin length (mm)64 mm
Pin-to-pin length (in)2 1/2 in
Drum Ø(mm)73 mm
Drum Ø(in)2 7/8 in
Maximum line Ø(mm)4 mm
Maximum line Ø(in)5/32 in
Jaw width (mm)8 mm
Jaw width (in) 5/16 in
Maximum luff wire Ø(mm)3 mm
Maximum luff wire Ø(in) 1/8 in
Clevis pin Ø(mm)6.4 mm
Clevis pin Ø(in)1/4 in
Weight (g)215 g
Weight (oz)7.6 oz
Maximum working load (kg)431 kg
Maximum working load (lb)950 lb
Boat length - monohull (m)4.9 - 6.1 m
Boat length - monohull (ft)16 - 20 ft
Boat length - multihull (m)to 5.5 m
Boat length - multihull (ft)to 18 ft
Includes upper swivel164
Includes drum165
FootnoteIncludes drum and upper swivel. Does not include hoistable swivel.
Pin-to-pin length (in)2 1/2 in
Drum Ø(mm)73 mm
Drum Ø(in)2 7/8 in
Maximum line Ø(mm)4 mm
Maximum line Ø(in)5/32 in
Jaw width (mm)8 mm
Jaw width (in) 5/16 in
Maximum luff wire Ø(mm)3 mm
Maximum luff wire Ø(in) 1/8 in
Clevis pin Ø(mm)6.4 mm
Clevis pin Ø(in)1/4 in
Weight (g)215 g
Weight (oz)7.6 oz
Maximum working load (kg)431 kg
Maximum working load (lb)950 lb
Boat length - monohull (m)4.9 - 6.1 m
Boat length - monohull (ft)16 - 20 ft
Boat length - multihull (m)to 5.5 m
Boat length - multihull (ft)to 18 ft
Includes upper swivel164
Includes drum165
FootnoteIncludes drum and upper swivel. Does not include hoistable swivel.
