Description

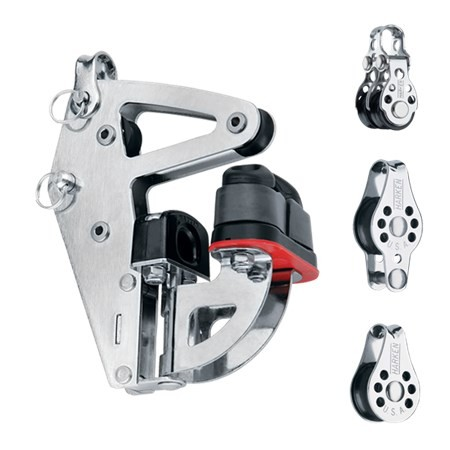

The dinghy vang features 16 mm sheaves with stainless ball bearing for high loads. The assembly includes a 468 Micro Cam-Matic ® cleat that allows precise trimming. It 's easy to cleat because it pivots for a fair lead. The unit connects to a mast bracket with a 1/4" pin. The system provides a 12:1 purchase when cascaded with 4:1 blocks. The kit includes a 16 mm double block cascaded to a Micro single with becket for the vang purchase, plus a Micro single for attaching the cunningham.
Weight (oz)10.3 oz
Maximum sail area (m ²)11.6 m ²
Maximum sail area (ft ²)125 ft ²
Maximum working load (kg)181 kg
Maximum working load (lb)400 lb
Breaking load (kg)454 kg
Breaking load (lb)1000 lb
