Description

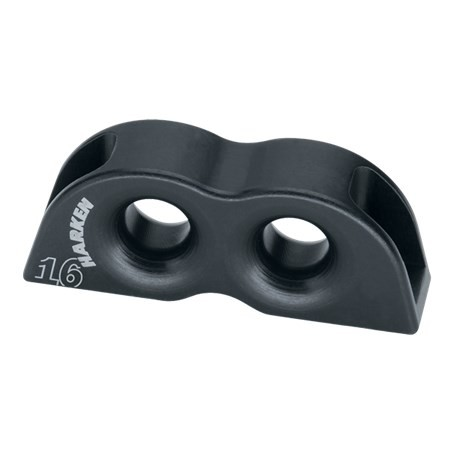

Harken Bolt-Down Fairleads are used on boats 6 -15 m (20 -50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.
Length (mm)91 mm
Length (in)3 9/16 in
Width (mm)22 mm
Width (in)7/8 in
Height (mm)31.8 mm
Height (in)1 1/4 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in)9/16 in
Center hole Ø(mm)16 mm
Center hole Ø(in)5/8 in
Weight (g)80 g
Weight (oz)2.82 oz
Fasteners (mm)8 SH mm
Fasteners (in)5/16 SH in
Maximum working load (kg)1816 kg
Maximum working load (lb)4000 lb
Breaking load (kg)3632 kg
Breaking load (lb)8000 lb
A (mm)67.5 mm
Length (in)3 9/16 in
Width (mm)22 mm
Width (in)7/8 in
Height (mm)31.8 mm
Height (in)1 1/4 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in)9/16 in
Center hole Ø(mm)16 mm
Center hole Ø(in)5/8 in
Weight (g)80 g
Weight (oz)2.82 oz
Fasteners (mm)8 SH mm
Fasteners (in)5/16 SH in
Maximum working load (kg)1816 kg
Maximum working load (lb)4000 lb
Breaking load (kg)3632 kg
Breaking load (lb)8000 lb
A (mm)67.5 mm
