Description

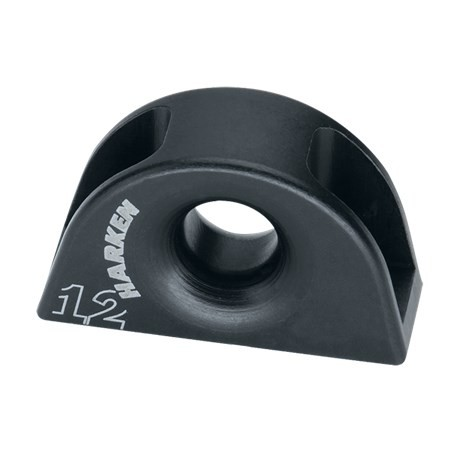

Harken Bolt-Down Fairleads are used on boats 6 -15 m (20 -50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.
Length (mm)48 mm
Length (in)1 7/8 in
Width (mm)18 mm
Width (in)11/16 in
Height (mm)28.2 mm
Height (in)1 1/8 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in)3/8 in
Center hole Ø(mm)12 mm
Center hole Ø(in)15/32 in
Weight (g)28 g
Weight (oz).99 oz
Fasteners (mm)6 SH mm
Fasteners (in)1/4 SH in
Maximum working load (kg)908 kg
Maximum working load (lb)2000 lb
Breaking load (kg)1816 kg
Breaking load (lb)4000 lb
A (mm)32 mm
Length (in)1 7/8 in
Width (mm)18 mm
Width (in)11/16 in
Height (mm)28.2 mm
Height (in)1 1/8 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in)3/8 in
Center hole Ø(mm)12 mm
Center hole Ø(in)15/32 in
Weight (g)28 g
Weight (oz).99 oz
Fasteners (mm)6 SH mm
Fasteners (in)1/4 SH in
Maximum working load (kg)908 kg
Maximum working load (lb)2000 lb
Breaking load (kg)1816 kg
Breaking load (lb)4000 lb
A (mm)32 mm
