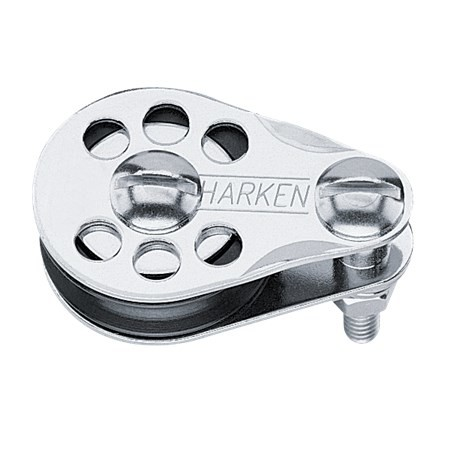

301-25mm Wire Cheek Block

Sheave Ø(mm)25 mm
Sheave Ø(in)1 in
Weight (g)35 g
Weight (oz)1.25 oz
Maximum wire Ø(in)3/32 in
Maximum wire Ø(mm)2 mm
Maximum line Ø(mm)4 mm
Maximum line Ø(in)5/32 in
Fasteners (mm)5 RH mm
Fasteners (in)#10 RH in
Maximum working load (kg)454 kg
Maximum working load (lb)1000 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
FootnoteFasteners included
