Description

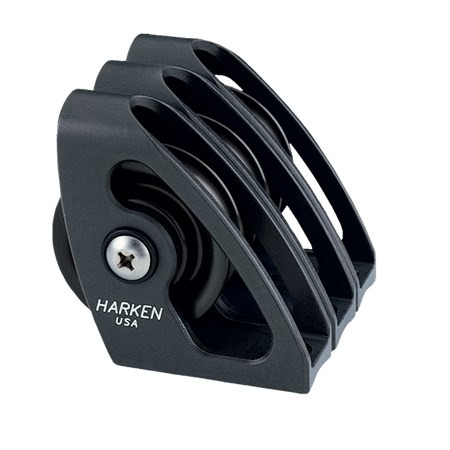

Over-the-top blocks lead lines aft over cabin houses, coamings, and splashguards.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Length (mm)83 mm
Length (in)3 1/4 in
Width (mm)89 mm
Width (in)3 1/2 in
Height (mm)83 mm
Height (in)3 1/4 in
Weight (g)513 g
Weight (oz)18.1 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Number of fasteners6
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
Maximum working load (kg)1136 kg
Maximum working load (lb)2500 lb
Breaking load (lb)5000 lb
Breaking load (kg)2272 kg
Sheave Ø(in)2 1/4 in
Length (mm)83 mm
Length (in)3 1/4 in
Width (mm)89 mm
Width (in)3 1/2 in
Height (mm)83 mm
Height (in)3 1/4 in
Weight (g)513 g
Weight (oz)18.1 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Number of fasteners6
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
Maximum working load (kg)1136 kg
Maximum working load (lb)2500 lb
Breaking load (lb)5000 lb
Breaking load (kg)2272 kg
