Description

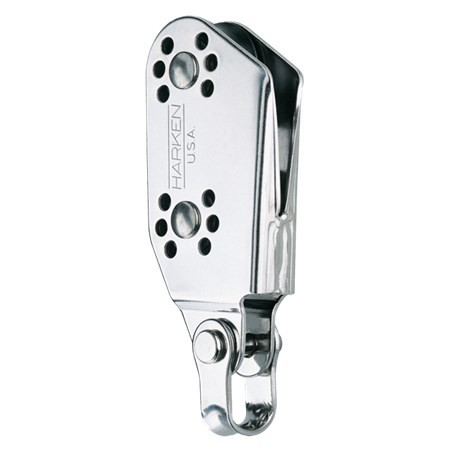

Low-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.
Sheave Ø(mm)22 mm
Sheave Ø(in)7/8 in
Length (mm)89 mm
Length (in)3 1/2 in
Weight (g)57 g
Weight (oz)2 oz
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in) 1/4 in
Maximum working load (kg)159 kg
Maximum working load (lb)350 lb
Breaking load (kg)544 kg
Breaking load (lb)1200 lb
Sheave Ø(in)7/8 in
Length (mm)89 mm
Length (in)3 1/2 in
Weight (g)57 g
Weight (oz)2 oz
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in) 1/4 in
Maximum working load (kg)159 kg
Maximum working load (lb)350 lb
Breaking load (kg)544 kg
Breaking load (lb)1200 lb
