Description

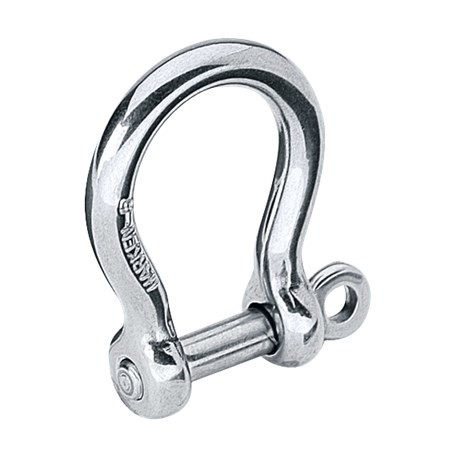

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Shackle pin Ø(mm)6 mm
Shackle pin Ø(in)1/4 in
Weight (g)29.5 g
Weight (oz)1.04 oz
A (mm)27 mm
A (in)1 1/16 in
B (mm)14 mm
B (in) 9/16 in
C (mm)19 mm
C (in) 3/4 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
Shackle pin Ø(in)1/4 in
Weight (g)29.5 g
Weight (oz)1.04 oz
A (mm)27 mm
A (in)1 1/16 in
B (mm)14 mm
B (in) 9/16 in
C (mm)19 mm
C (in) 3/4 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
Product Details
