Description

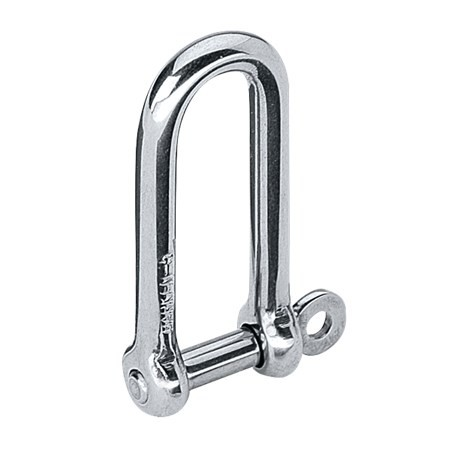

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Weight (g)22 g
Weight (oz)0.78 oz
A (mm)38 mm
A (in)1 1/2 in
B (mm)10 mm
B (in) 3/8 in
Maximum working load (kg)540 kg
Maximum working load (lb)1190 lb
Breaking load (kg)1080 kg
Breaking load (lb)2380 lb
