Description

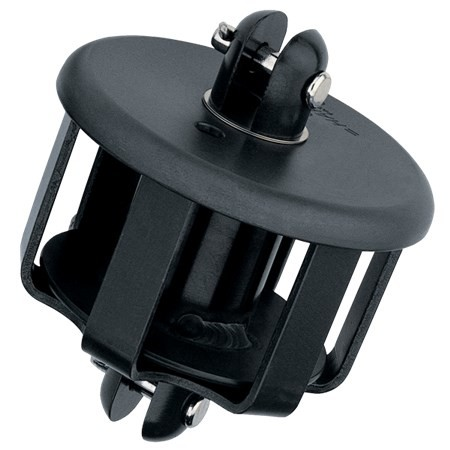

Harken ® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit.
Pin-to-pin length (mm)102 mm
Pin-to-pin length (in)4 in
Drum Ø(mm)106 mm
Drum Ø(in)4 3/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Jaw width (mm)10 mm
Jaw width (in) 3/8 in
Maximum luff wire Ø(mm)5 mm
Maximum luff wire Ø(in) 3/16 in
Clevis pin Ø(mm)7.9 mm
Clevis pin Ø(in)5/16 in
Weight (g)386 g
Weight (oz)13.6 oz
Maximum working load (lb)2000 lb
Maximum working load (kg)907 kg
Use with207
