Description

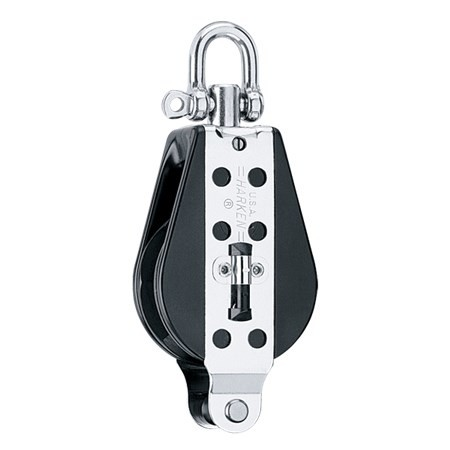

Midrange Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.
Sheave Ø(mm)76 mm
Sheave Ø(in)3 in
Length (mm)184 mm
Length (in)7 1/8 in
Weight (g)425 g
Weight (oz)15 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)816 kg
Maximum working load (lb)1800 lb
Breaking load (kg)2268 kg
Breaking load (lb)5000 lb
Turnsclockwise
Sheave Ø(in)3 in
Length (mm)184 mm
Length (in)7 1/8 in
Weight (g)425 g
Weight (oz)15 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)816 kg
Maximum working load (lb)1800 lb
Breaking load (kg)2268 kg
Breaking load (lb)5000 lb
Turnsclockwise
