Description

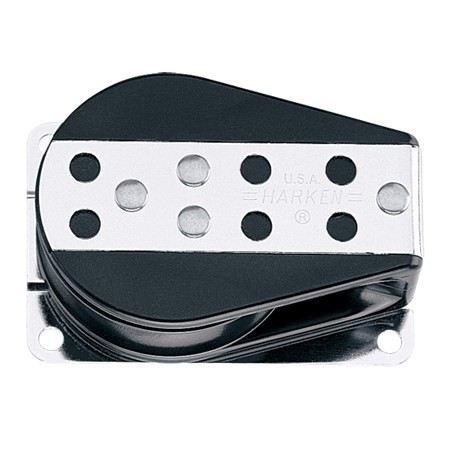

Midrange blocks ' robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Sheave Ø(mm)76 mm
Sheave Ø(in)3 in
Length (mm)111 mm
Length (in)4 3/8 in
Weight (g)312 g
Weight (oz)11 oz
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Fasteners (mm)6 RH mm
Fasteners (in)1/4 RH in
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb
Breaking load (kg)1905 kg
Breaking load (lb)4200 lb
Sheave Ø(in)3 in
Length (mm)111 mm
Length (in)4 3/8 in
Weight (g)312 g
Weight (oz)11 oz
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Fasteners (mm)6 RH mm
Fasteners (in)1/4 RH in
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb
Breaking load (kg)1905 kg
Breaking load (lb)4200 lb
