Description

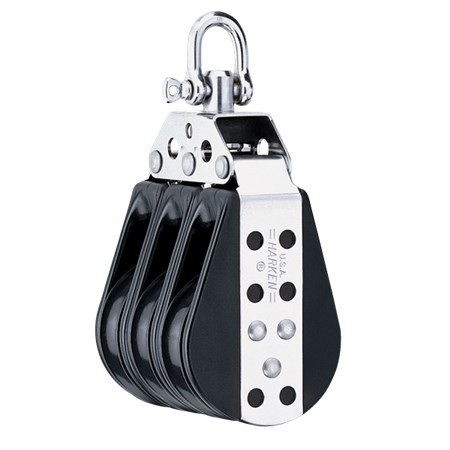

Midrange blocks ' robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Sheave Ø(mm)76 mm
Sheave Ø(in)3 in
Length (mm)197 mm
Length (in)7 3/4 in
Weight (g)1020 g
Weight (oz)36 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)1724 kg
Maximum working load (lb)3800 lb
Breaking load (kg)3856 kg
Breaking load (lb)8500 lb
Sheave Ø(in)3 in
Length (mm)197 mm
Length (in)7 3/4 in
Weight (g)1020 g
Weight (oz)36 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)1724 kg
Maximum working load (lb)3800 lb
Breaking load (kg)3856 kg
Breaking load (lb)8500 lb
