Description

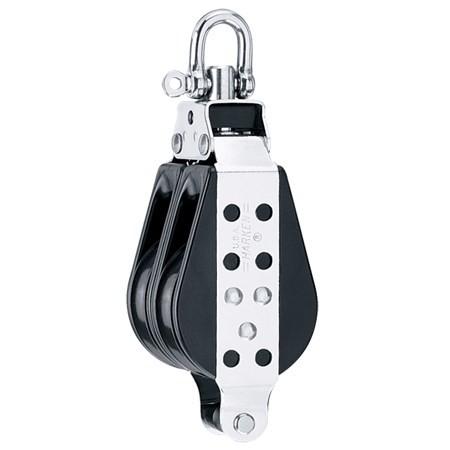

Midrange blocks ' robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Sheave Ø(mm)76 mm
Sheave Ø(in)3 in
Length (mm)216 mm
Length (in)8 1/2 in
Weight (g)751 g
Weight (oz)26.5 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)1270 kg
Maximum working load (lb)2800 lb
Breaking load (kg)3175 kg
Breaking load (lb)7000 lb
Sheave Ø(in)3 in
Length (mm)216 mm
Length (in)8 1/2 in
Weight (g)751 g
Weight (oz)26.5 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)1270 kg
Maximum working load (lb)2800 lb
Breaking load (kg)3175 kg
Breaking load (lb)7000 lb
