Description

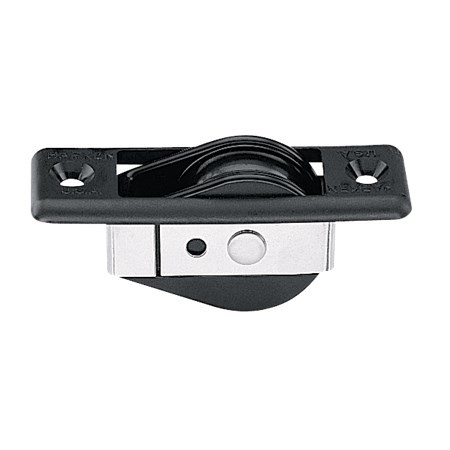

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications.
Sheave Ø(mm)38 mm
Sheave Ø(in)1 1/2 in
Length (mm)89 mm
Length (in)3 1/2 in
Weight (g)64 g
Weight (oz)2.25 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Mounting hole spacing (mm)73 mm
Mounting hole spacing (in)2 7/8 in
Cutout (mm) 24 x 56 mm
Cutout (in) 15/16 x 2 3/16 in
Maximum working load (kg)136 kg
Maximum working load (lb)300 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
Sheave Ø(in)1 1/2 in
Length (mm)89 mm
Length (in)3 1/2 in
Weight (g)64 g
Weight (oz)2.25 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Mounting hole spacing (mm)73 mm
Mounting hole spacing (in)2 7/8 in
Cutout (mm) 24 x 56 mm
Cutout (in) 15/16 x 2 3/16 in
Maximum working load (kg)136 kg
Maximum working load (lb)300 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
