Description

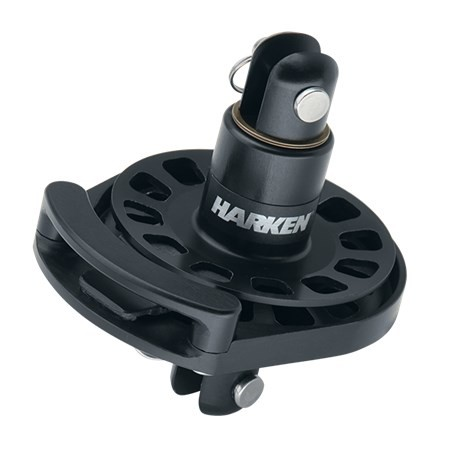

The continuous line-drive furler is the perfect solution for high-performance skiffs and dinghies that use oversized jibs/gennakers and for staysails on larger boats. Unlike conventional furling drums, the low-profile line-driver never runs out of line, and can completely furl any sized sail. Offset holes in the drive sheave grip line securely, with the stripper arm and feeder working together to prevent line from jamming. The line guard adjusts in 90-degree increments to accommodate attachments to the boat.
Pin-to-pin length (in)2 11/16 in
Drum Ø(mm)73 mm
Drum Ø(in)2 7/8 in
Maximum line Ø(mm)5 mm
Maximum line Ø(in)3/16 in
Jaw width (mm)8 mm
Jaw width (in)5/16 in
Maximum luff wire Ø(mm)3 mm
Maximum luff wire Ø(in)1/8 in
Clevis pin Ø(mm)6.4 mm
Clevis pin Ø(in)1/4 in
Weight (g)154 g
Weight (oz)5.4 oz
Maximum working load (lb)950 lb
Maximum working load (kg)431 kg
Use with164
