Description
Contoured wave design splashproof switch panelswith circuit breakers and rocker switches with LEDindicators in a variety of sizes and configurations.
- Facia is made of UV treated black plastic
- Reinforced fastening holes on each corner
- UL approved rocker switches IP65 splashproof rated
- Switches include an LED indicator light
- Push to reset circuit breakers incorporated into all panels
- Panels are fully wired for use
- Variety of configurations inc. cig socket and battery meter
- Panels can be fitted in vertical or horizontal position
- Includes S/S fastenings
- Includes 30 assorted stick-on name labels
- 12 volt only
| Switches | Panel Size | Circuit Breakers |

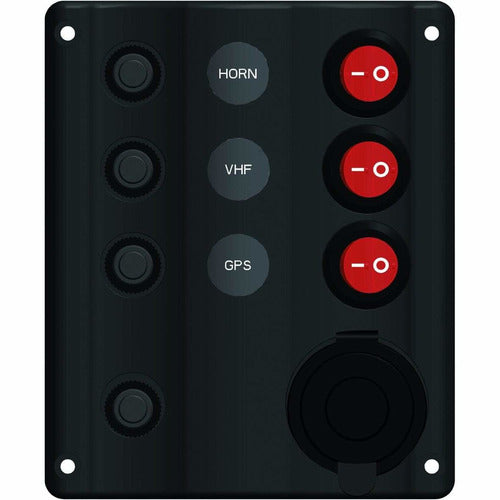

| 3 Switches & 1 Cig Socket | 130 x 107mm |
1 x 5 amp, 1 x 10 amp, 2 x 15 amp |

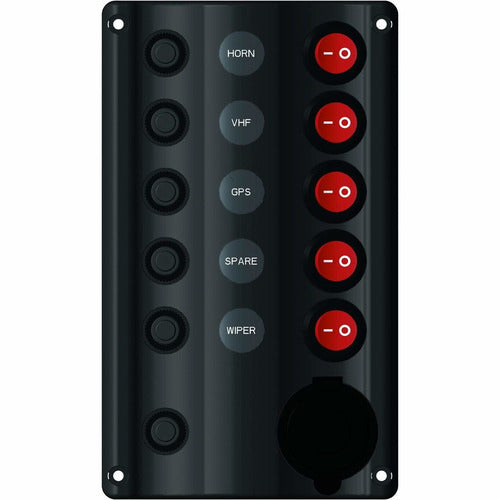

| 5 Switches & 1 Cig Socket | 180 x 107mm |
2 x 5 amp, 2 x 10 amp, 2 x 15 amp |
| 5 Switches &USB Socket | 180 x 107mm | 2 x 5 amp, 2 x 10 amp, 2 x 15 amp |
