Description
Checking your Mastervolt product has never been easier

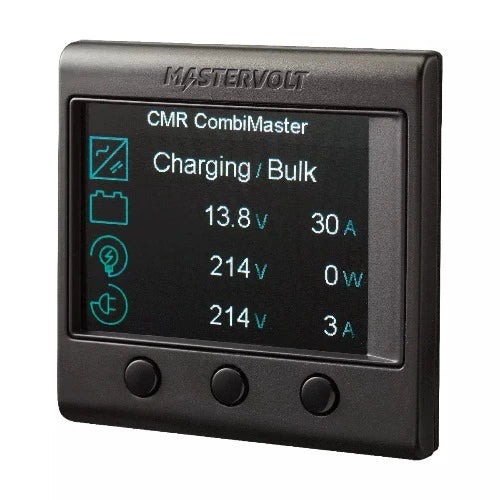

The SmartRemote completes any MasterBus or CZone* system. With its good looks and compact size, the SmartRemote is ideal as a remote panel in entry level power systems or as a local device readout in larger systems. Applications include boats, vehicles and stationary systems.
Local device monitoring
Mastervolt products enable intelligent power systems with advanced multi-device monitoring and control. However, in situations where the local device readout is hard to reach or too limited, an entry-level colour display for local device monitoring would be ideal. This is where the SmartRemote comes in.
Easy to use
The new SmartRemote single-device display is unique in many ways. It communicates with Mastervolt devices**, shows key parameters, allows simple device settings and is fun to use. Checking your batteries, adjusting your shore fuse or controlling your Mastervolt charger/inverter has never been easier.
Easy to install
The SmartRemote display can be panel mounted or may be integrated into a Blue Sea Systems Custom 360 bezel. Connection is easy as 1-2-3: simply click the network cable into a Mastervolt device and off you go.
Features
Full colour display for local device monitoring.
Displays four key parameters.
Control key device functions.
CZone* and MasterBus network compatible.
Universal, easy mounting.
Plug & Play - no configuration, no power supply needed.
Blue Sea Systems Custom 360 integration.
BLA CODE110270
DescriptionSmart Remote
General Specifications
Interfaces-CZone, MasterBus
Display/read-out-.8 inch, 320 x 240 pixels, high colour
Mountingpanel mount (cutout: 52 mm / 2 inch, 4 screws included); Blue Sea 360 panel mount (locking ring included)
Protection degree-IP20
Dimensions, hxwxd-72 x 72 x 29.4 mm
Weight-.075 kg
Delivered with-MasterBus cable (6 mtr), Mastervolt-Czone drop cable (1 mtr), manual
Technical Specifications-Power consumptionBus powered, < 160 mW (idle mode)
