Description

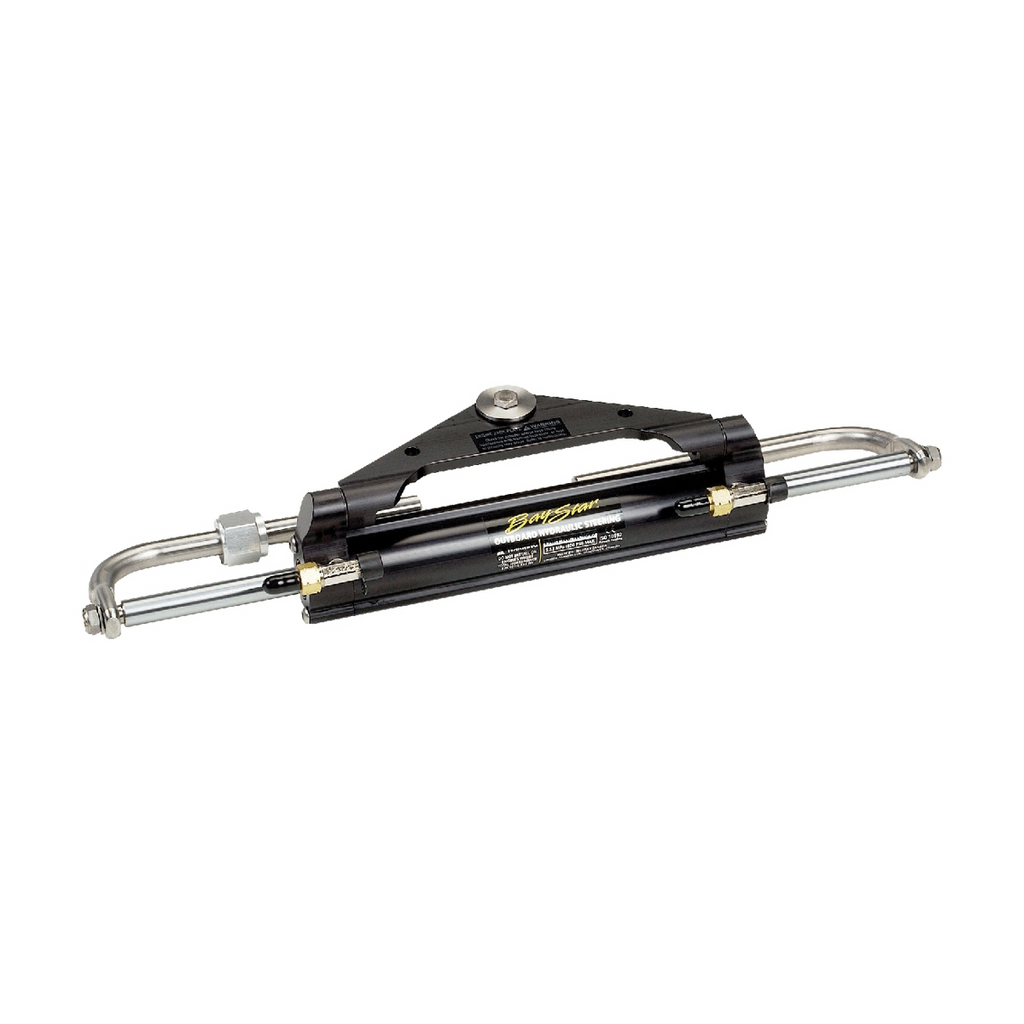

Baystar Front mount Outboard Steering rams
Suitable for most single-outboard powered boats rated up to 150 hp including runabouts and inflatables
Key Features:
- Balanced design that fits most splashwells provides full engine movement
- Cylinders to suit most outboards up to 150Hp

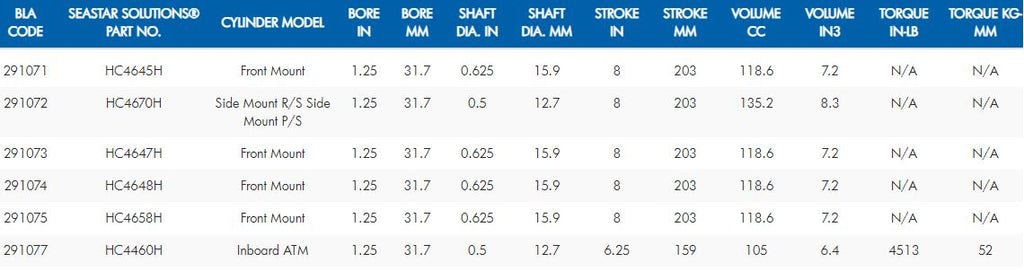

| Code | SeaStar Solutions® Part No. | Cylinder Model | Bore in | Bore mm | Shaft Dia. In | Shaft Dia. mm | Stroke in | Stroke mm | Volume cc | Volume in3 | Torque in-lb | Torque kg-mm | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 291071 | HC4645H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A | ||||||||||||
| 291072 | HC4670H | Side Mount R/S Side Mount P/S | 1.25 | 31.7 | 0.5 | 12.7 | 8 | 203 | 135.2 | 8.3 | N/A | N/A | ||||||||||||
| 291073 | HC4647H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A | ||||||||||||
| 291074 | HC4648H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A | ||||||||||||
| 291075 | HC4658H | Front Mount | 1.25 | 31.7 | 0.625 | 15.9 | 8 | 203 | 118.6 | 7.2 | N/A | N/A | ||||||||||||
| 291077 | HC4460H | Inboard ATM | 1.25 | 31.7 | 0.5 | 12.7 | 6.25 | 159 | 105 | 6.4 | 4513 | 52 |
Cylinder Code Make Year Capacity Notes
291071 Force 1985 to date 90–150HP
291071 Honda 1992 to date 30–90HP
291073 Honda 1998 – 2010 115–130HP
291071 Honda 2001 to date 150HP
291071 Honda 2003 to date BF135HP
291071 Honda 2010 to date 115–150HP
291074 Johnson / Evinrude 1977 – 1990 65–150HP
291071 Johnson / Evinrude 1991 to date 40–150HP
291074 Johnson / Evinrude 1997 to date 115HP Ficht 4, 5
291071 Johnson / Evinrude 1997 to date 75–150HP Ficht
291074 Johnson / Evinrude 1998 to date 40–140HP 4-Stroke 1, 4
291071 Mercury/Mariner 1984 to date 75–150HP
291071 Nissan 1990 to date 120–140HP
291071 Suzuki 1986 to date 150HP
Suzuki 1996 only 115–140HP
291071 Suzuki 1987 – 2002* 115–140HP 1
291071 Suzuki 1990 – 2000 90–100HP
291071 Suzuki 1998 to date 40–70 4-Stroke 1
291075 Suzuki 2001 to date 115–140HP 4-Stroke 1, 4
291071 Tohatsu 1990 to date 40–140HP
291071 Yamaha 1998 to date 40–50HP 2
291071 Yamaha 1998 to date 60HP 3
291071 Yamaha 1986 to date 70–90HP 1
291071 Yamaha 1997 to date 80–150HP 4-Stroke
291074 Yamaha 2000 to date 25–60HP 4-Stroke 1
291074 Yamaha 2010 to date 70HP 4-Stroke
291075 Yamaha 1997 – 2013 115A 4-Stroke
291071 Yamaha 2014 to date 115B 4-Stroke
291071 Yanmar 1990 to date 27–36HP
291071 Force 1985 to date 90–150HP
291071 Honda 1992 to date 30–90HP
291073 Honda 1998 – 2010 115–130HP
291071 Honda 2001 to date 150HP
291071 Honda 2003 to date BF135HP
291071 Honda 2010 to date 115–150HP
291074 Johnson / Evinrude 1977 – 1990 65–150HP
291071 Johnson / Evinrude 1991 to date 40–150HP
291074 Johnson / Evinrude 1997 to date 115HP Ficht 4, 5
291071 Johnson / Evinrude 1997 to date 75–150HP Ficht
291074 Johnson / Evinrude 1998 to date 40–140HP 4-Stroke 1, 4
291071 Mercury/Mariner 1984 to date 75–150HP
291071 Nissan 1990 to date 120–140HP
291071 Suzuki 1986 to date 150HP
Suzuki 1996 only 115–140HP
291071 Suzuki 1987 – 2002* 115–140HP 1
291071 Suzuki 1990 – 2000 90–100HP
291071 Suzuki 1998 to date 40–70 4-Stroke 1
291075 Suzuki 2001 to date 115–140HP 4-Stroke 1, 4
291071 Tohatsu 1990 to date 40–140HP
291071 Yamaha 1998 to date 40–50HP 2
291071 Yamaha 1998 to date 60HP 3
291071 Yamaha 1986 to date 70–90HP 1
291071 Yamaha 1997 to date 80–150HP 4-Stroke
291074 Yamaha 2000 to date 25–60HP 4-Stroke 1
291074 Yamaha 2010 to date 70HP 4-Stroke
291075 Yamaha 1997 – 2013 115A 4-Stroke
291071 Yamaha 2014 to date 115B 4-Stroke
291071 Yanmar 1990 to date 27–36HP
