ORB KIT Twin Station Nylon Hose - HF6010

Fittings
All Dometic SeaStar Manual Hydraulic steering systems utilise the same style of fittings for all applications. These are 9.5mm (3/8″) compression fittings which utilise a 14.3mm (9/16″) - 24 extra fine thread.
ORB Fittings
These fittings are made of corrosion resistant stainless steel and now thread into the cylinders/helms via Positionable O-ring hose ports. Fittings can be easily orientated in any direction to accommodate tube routing.
Suits nylon/copper 3/8 hose

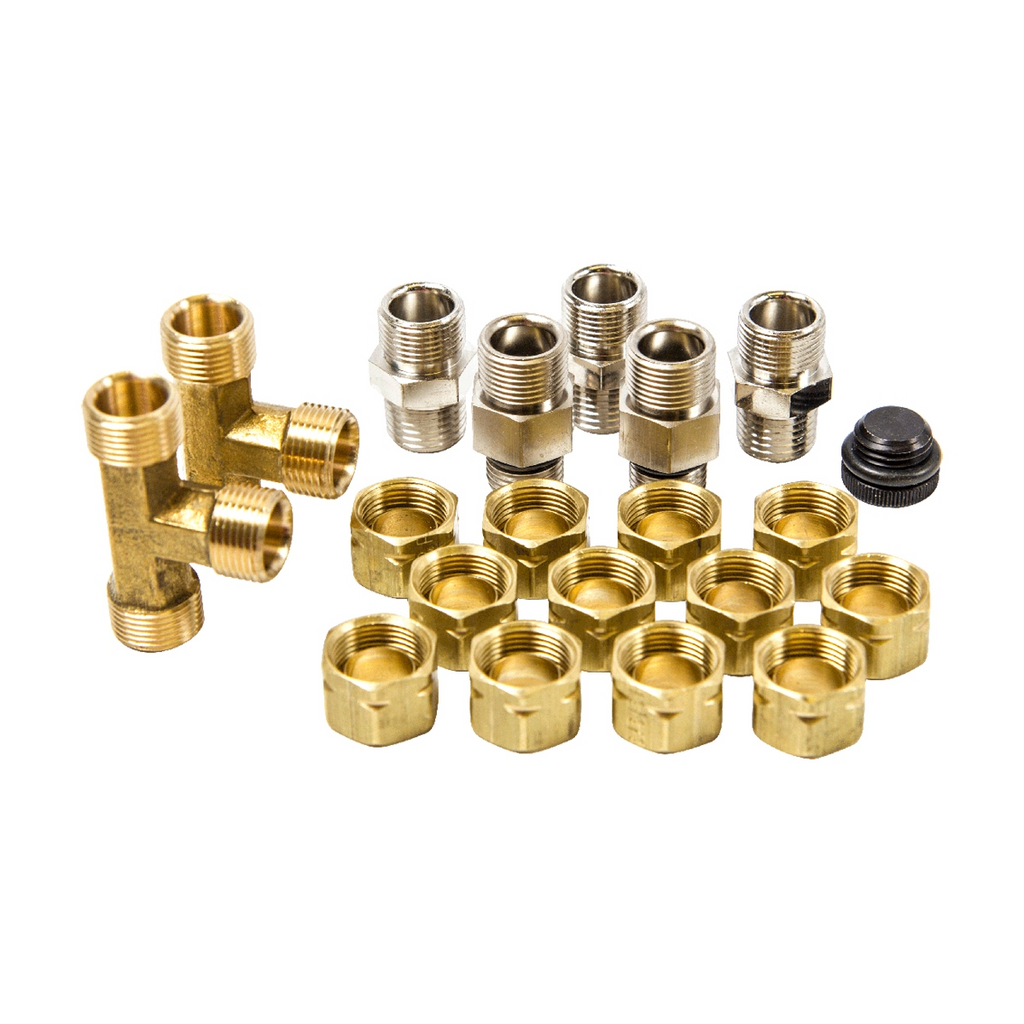

Item No.DescriptionQty Per Kit
1Tube nut 3⁄8" Ø12
2AConnector 3⁄8" tube2
2BConnector 3⁄8" tube3
3Tee Fitting 3 Ends - 3⁄8" tube2
4Non-Vented Filler Plug1
A*Tube Nut - 3⁄8" +Dia.2
B*3⁄8" Elbow - 5 ORB2
N.B. * Sipplied with helm pump
