Description

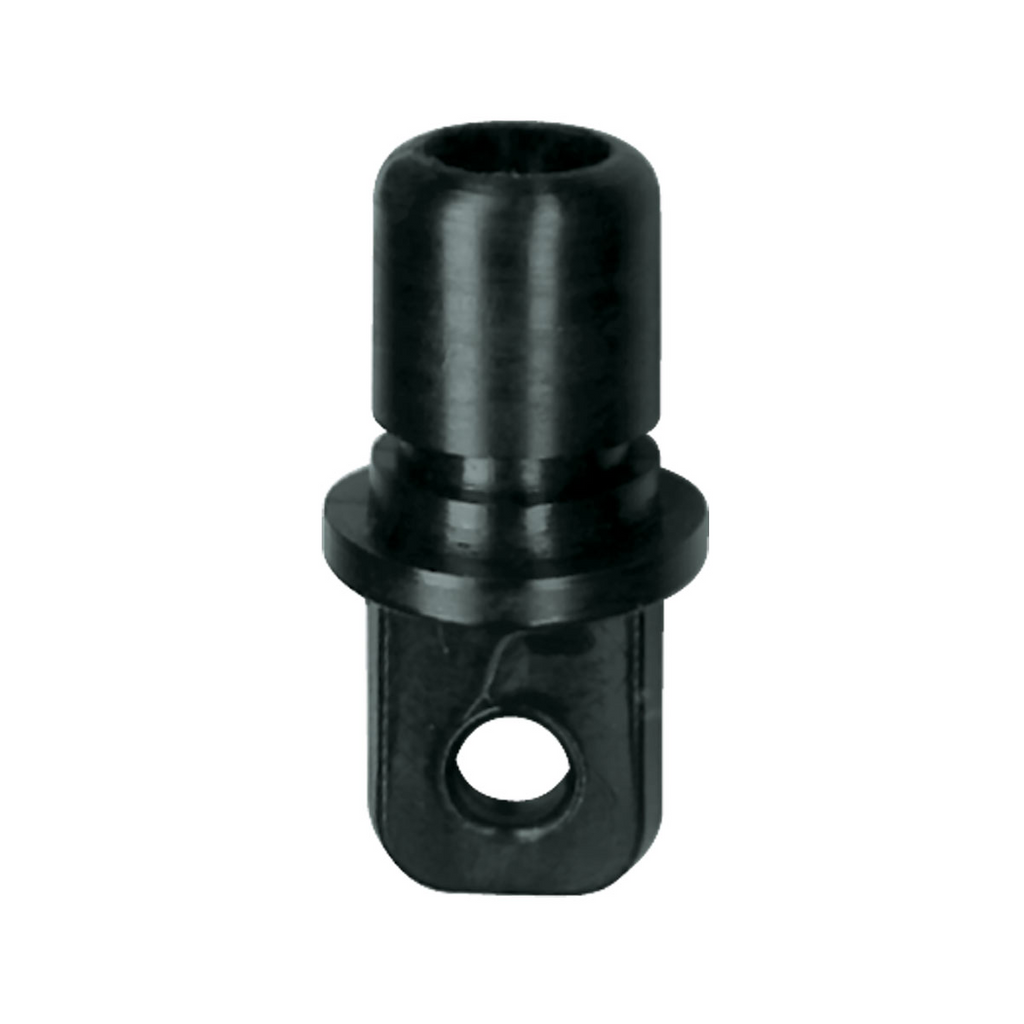

Designed to fit internally into most popular tube sizes. Available in black or white nylon and stainless steel.
| BLA CODE | MATERIAL | TUBE O.D. MM | TUBE O.D. IN | TUBE WALL THICKNESS MM | TUBE WALL THICKNESS G | A MM | B MM | C MM |
|---|
| 195002 | Black Nylon | 20 | 1.6 | 16.6 | 7 | 7 | ||
| 195003 | White Nylon | 20 | 1.6 | 16.6 | 7 | 7 | ||
| 195004 | Black Nylon | 25 | 1.6 | 21.8 | 6.5 | 7 | ||
| 195005 | White Nylon | 25 | 1.6 | 21.8 | 6.5 | 7 | ||
| 195006 | Black Nylon | 25 | 3 | 1.6 | 6.5 | 7 | ||
| 195014 | Stainless Steel | 25 | 7/8 | 3 | 16 | 18.6 | 6.5 | 7 |
| 195015 | Stainless Steel | 25 | 1 | 1.6 | 16 | 21.8 | 8 | 7 |
| 195016 | Stainless Steel | 32 | 1 1/4 | 1.6 | 16 | 28.4 | 8 | 7 |
