Description
Medium duty pressed stainless steel hinges. Plate thickness is 2mm and the hinge barrel is rolled. Pressed end, solid stainless steel pivot pin. Sold as a pair.
| BLA CODE | LENGTH FLAT MM | WIDTH MM | DEPTH MM | SPLIT MM | MOUNT SCREWS MM | OFF SET MM |
|---|

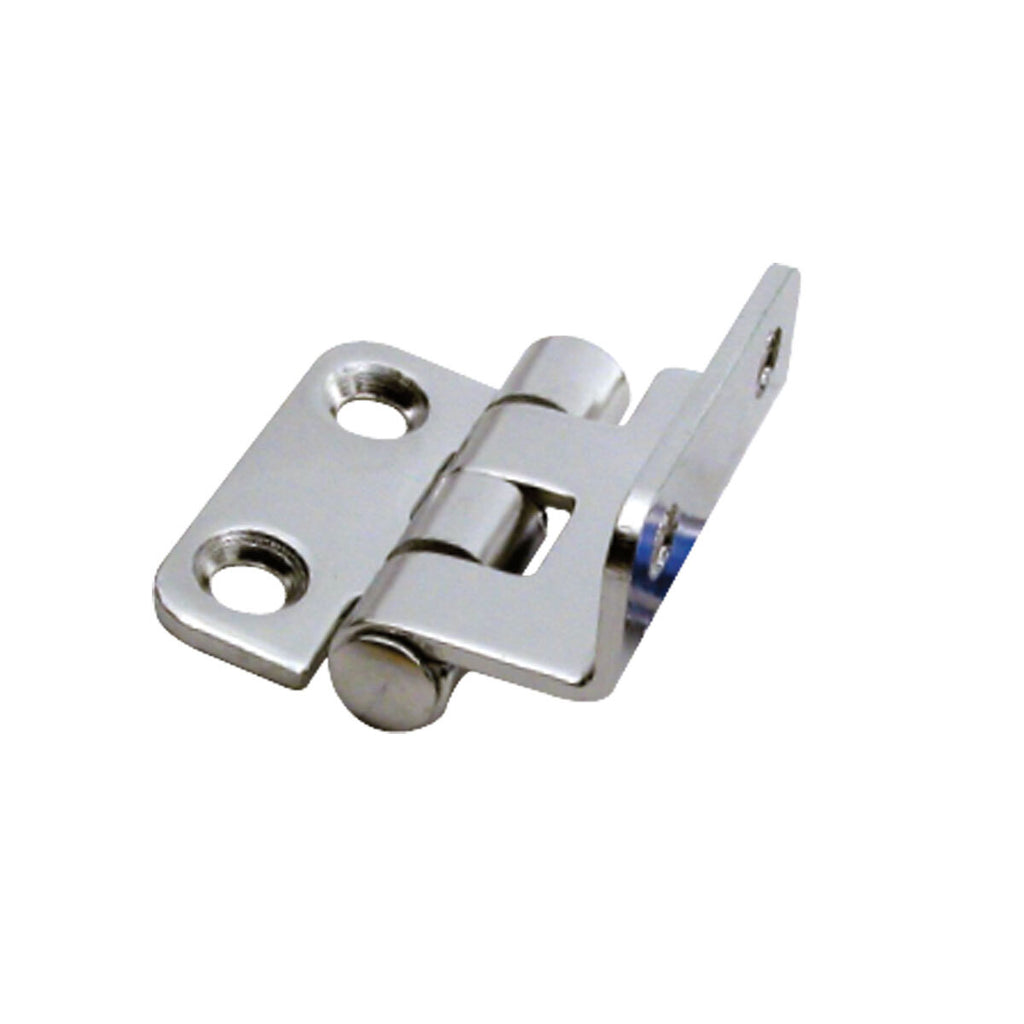

| 193536 | 36 | 41 | 20 | 18/18 | 4 c/s | 10 |

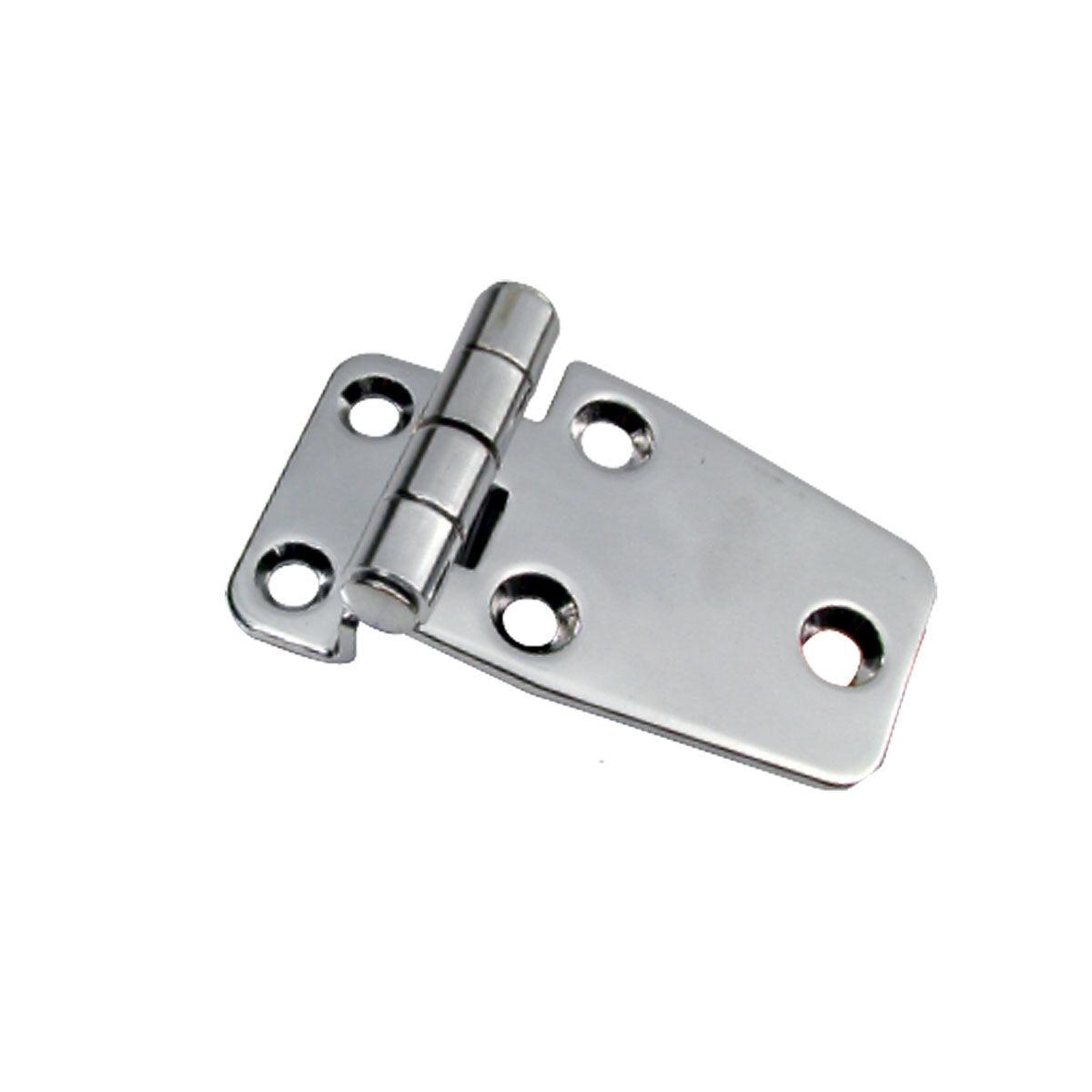

| 193540 | 66 | 41 | 20 | 18/48 | 4 c/s | 10 |

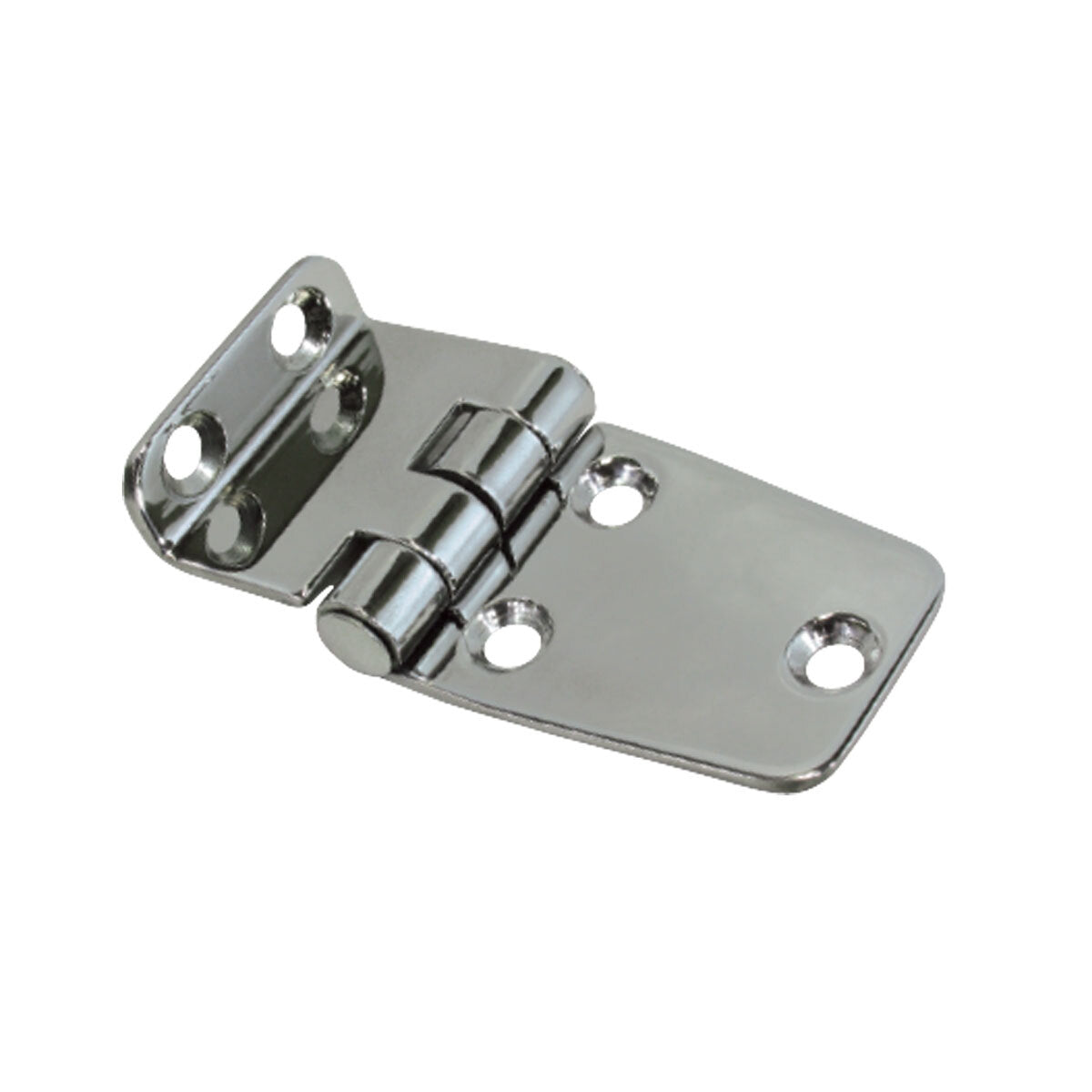

| 193542 | 75 | 41 | 30 | 23/52 | 4 c/s | 20 |

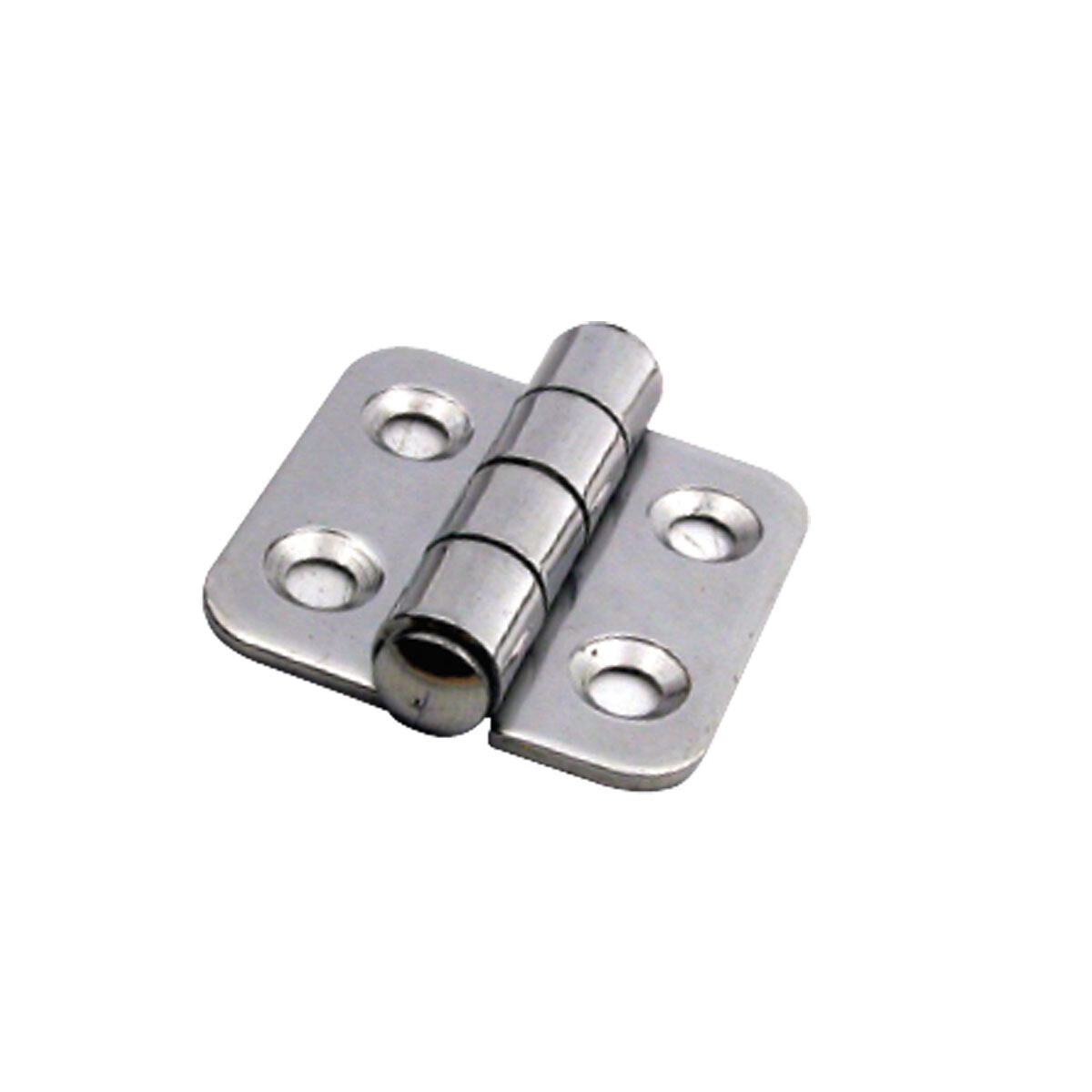

| 193550 | 40 | 41 | 10 | 20/20 | 4 c/s | - |

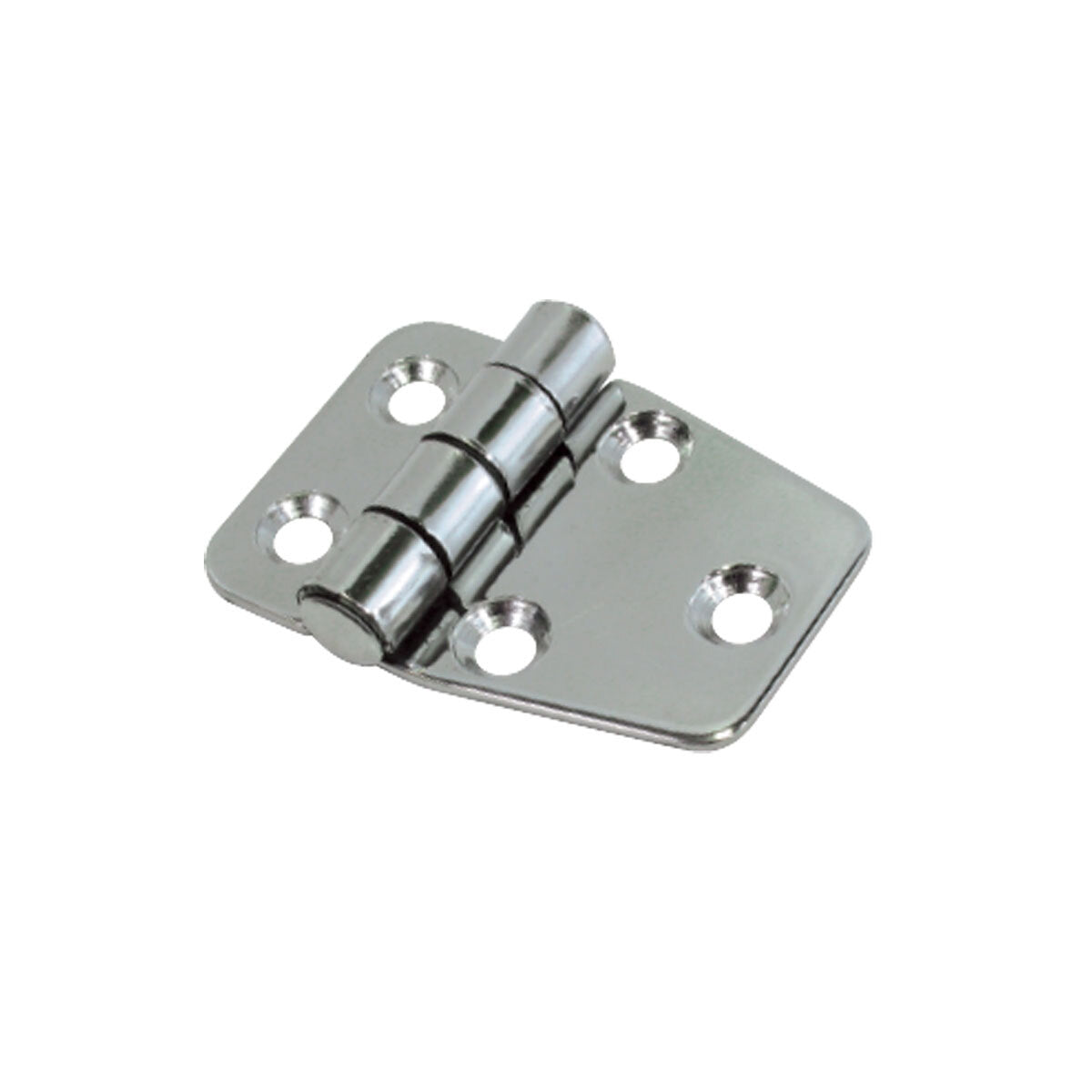

| 193552 | 56 | 41 | 10 | 18/38 | 4 c/s | - |

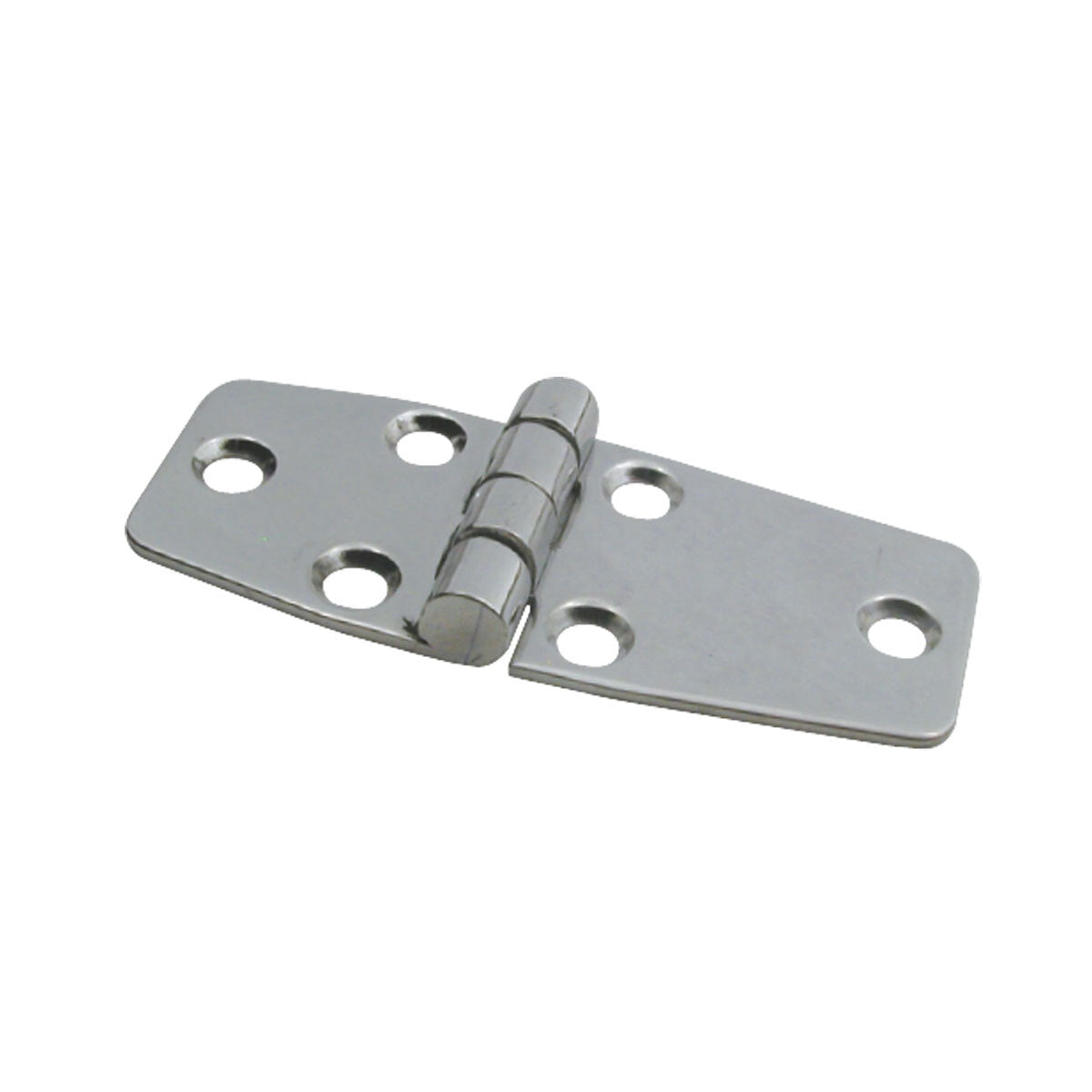

| 193554 | 86 | 41 | 10 | 38/48 | 4 c/s | - |

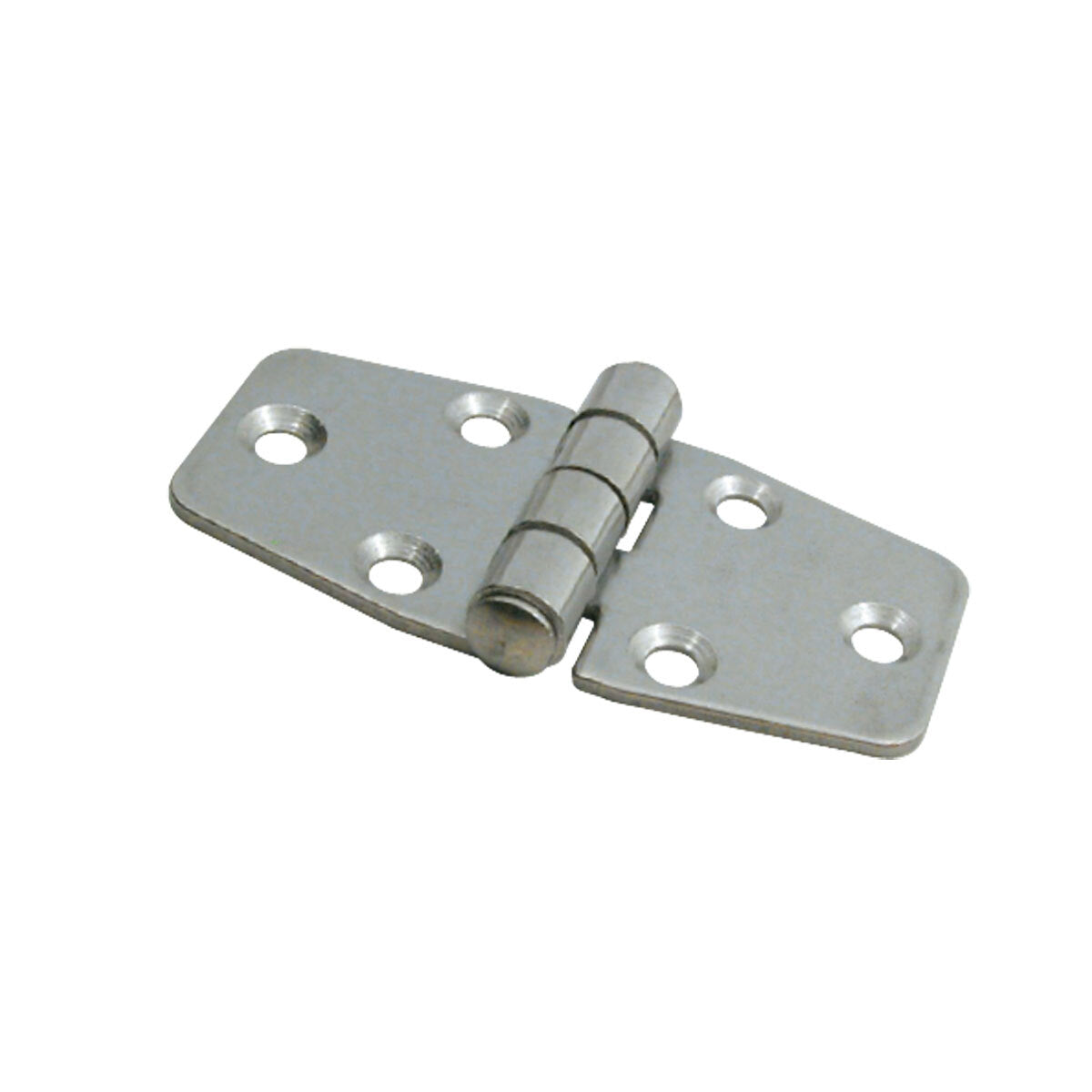

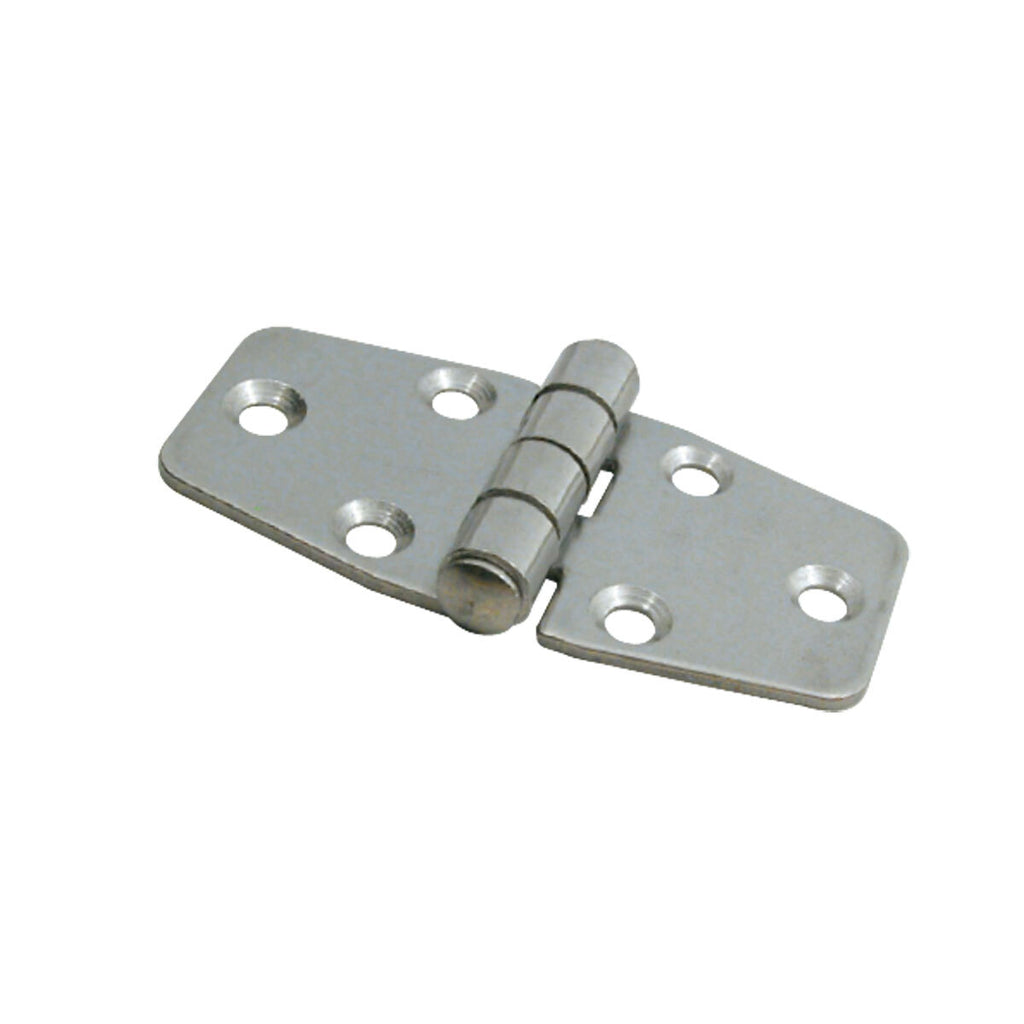

| 193556 | 76 | 41 | 10 | 38/38 | 4 c/s | - |

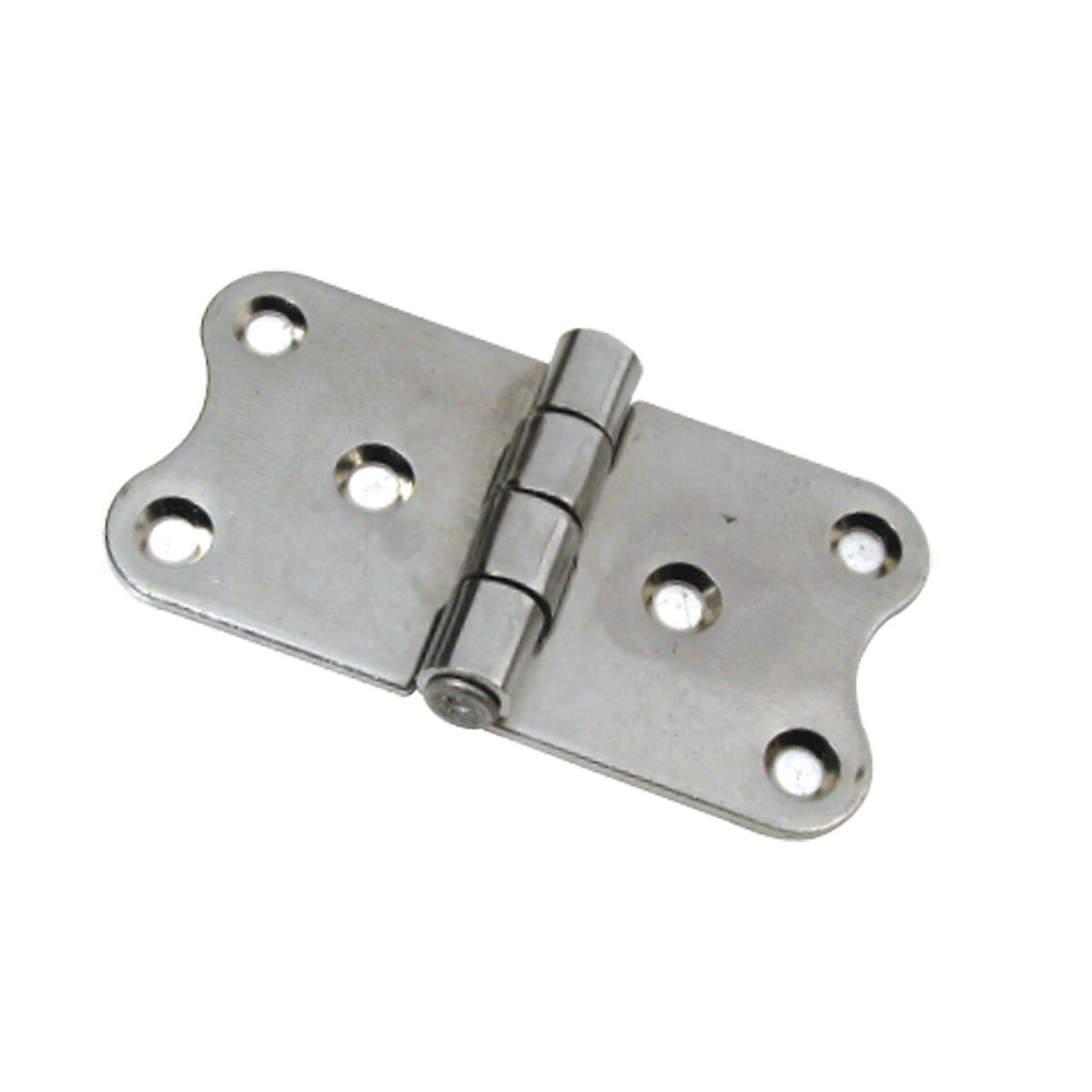

| 193570 | 78 | 41 | 10 | 39/39 | 4 c/s | - |

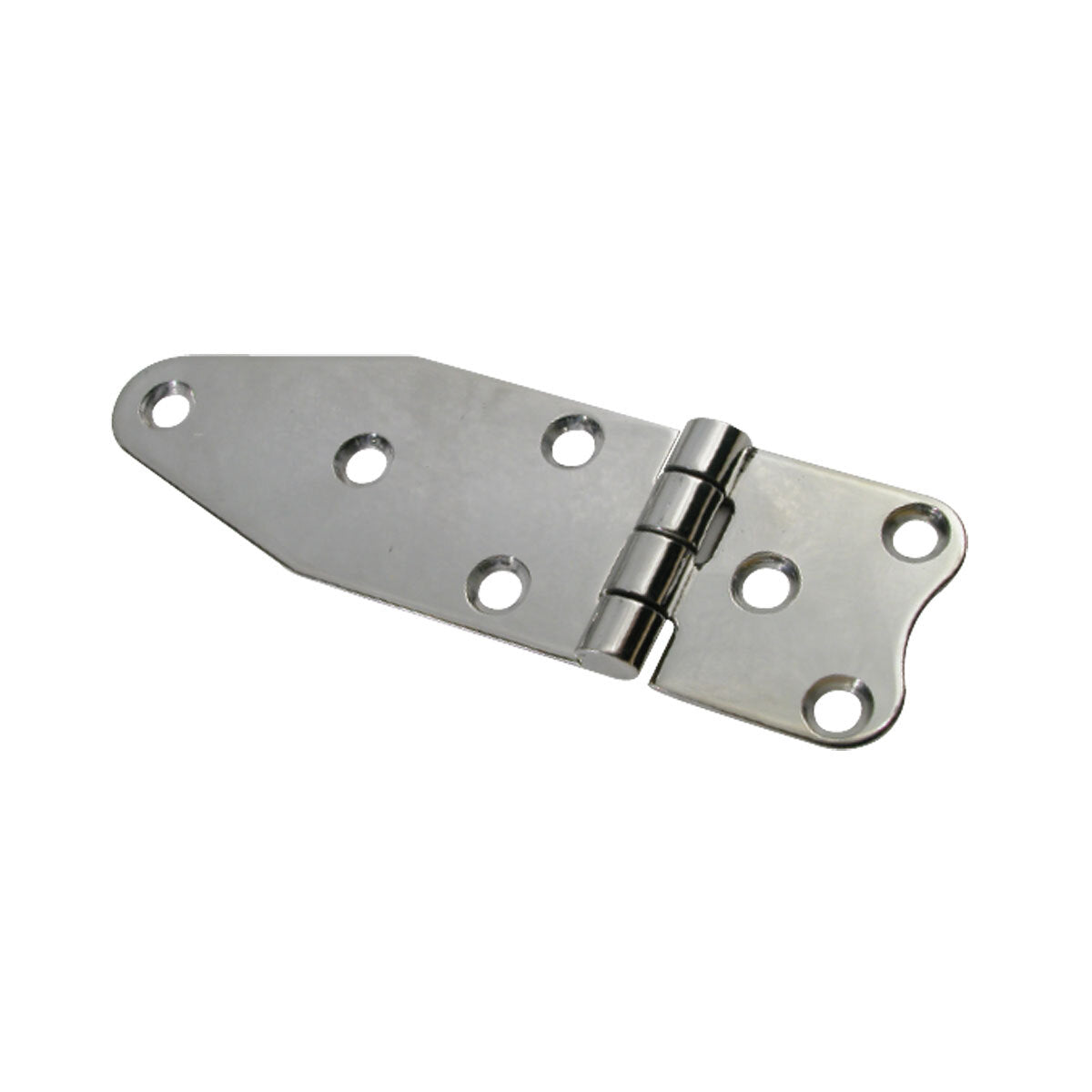

| 193572 | 126 | 41 | 10 | 37/89 | 4 c/s | - |

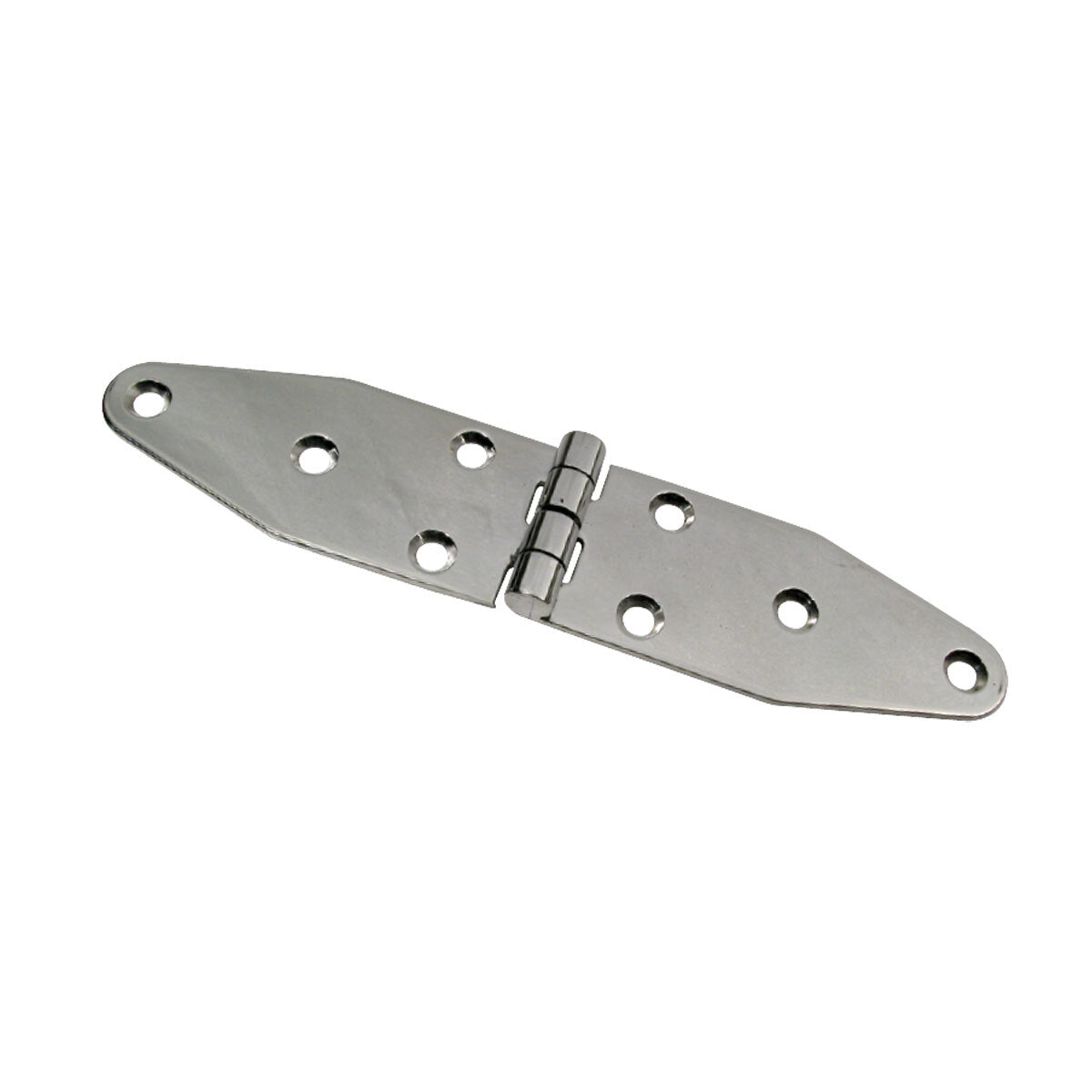

| 193574 | 178 | 41 | 10 | 89/89 | 4 c/s | - |

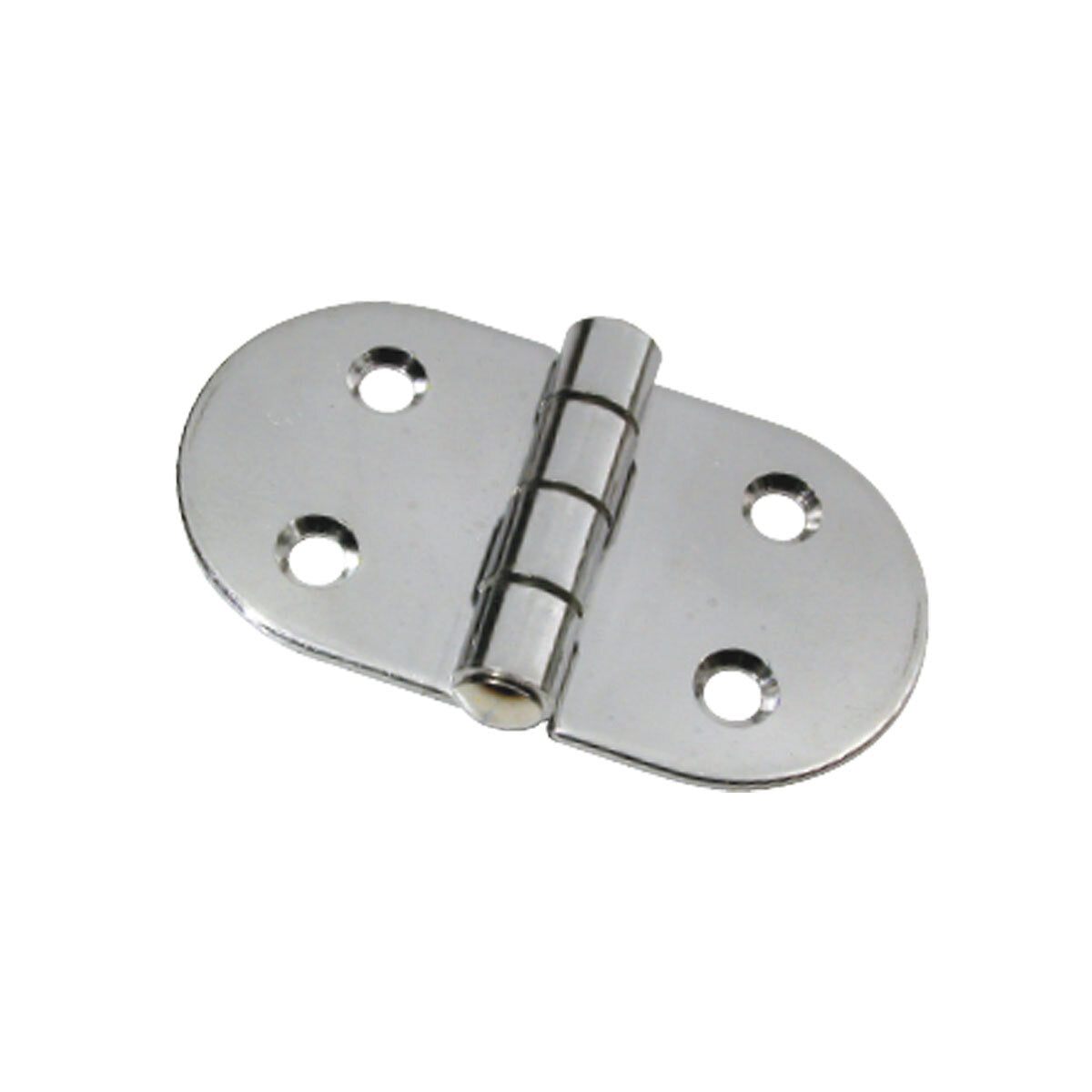

| 193576 | 74 | 41 | 10 | 37/37 | 4 c/s | - |

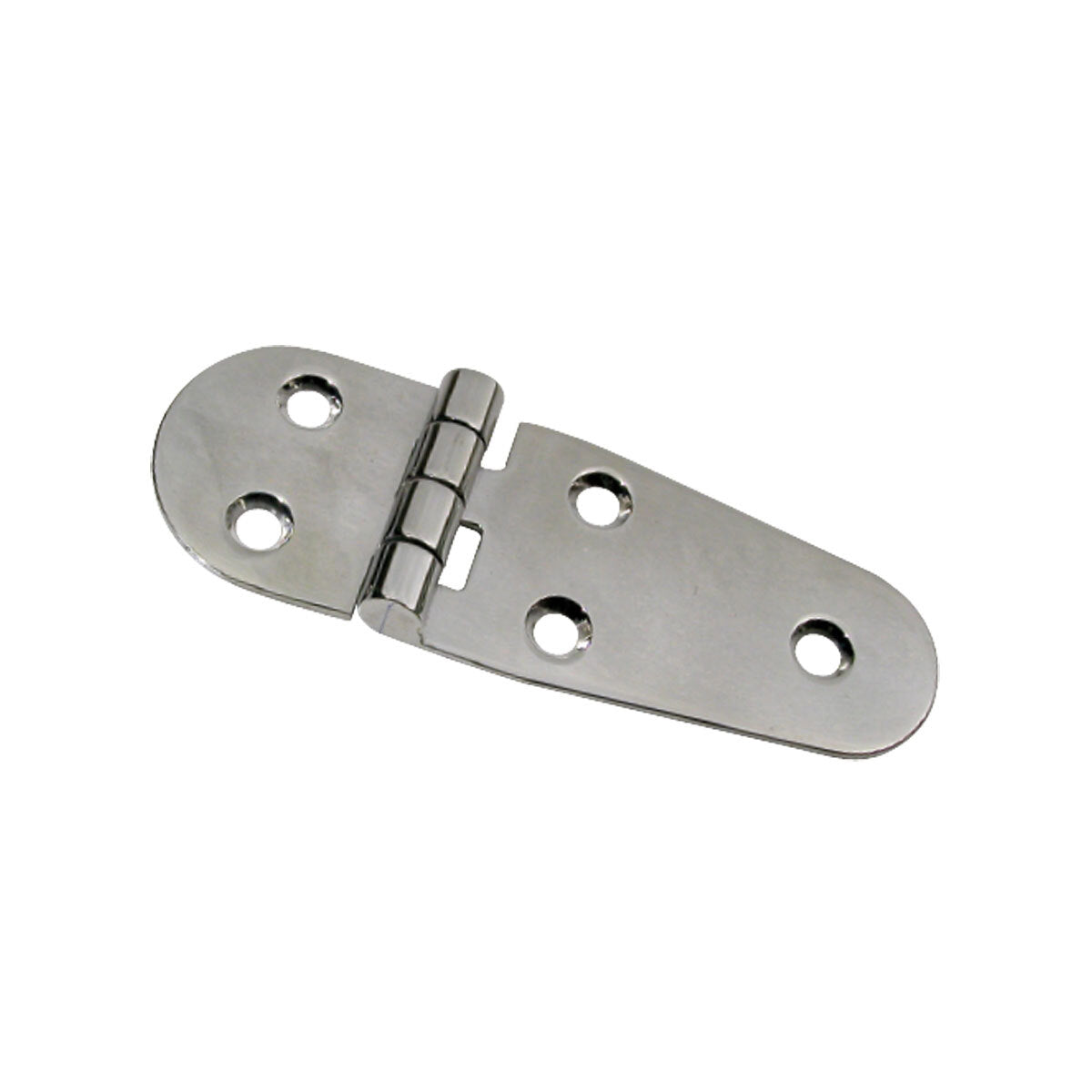

| 193578 | 107 | 38 | 7 | 41/66 | 4 c/s |
