Description

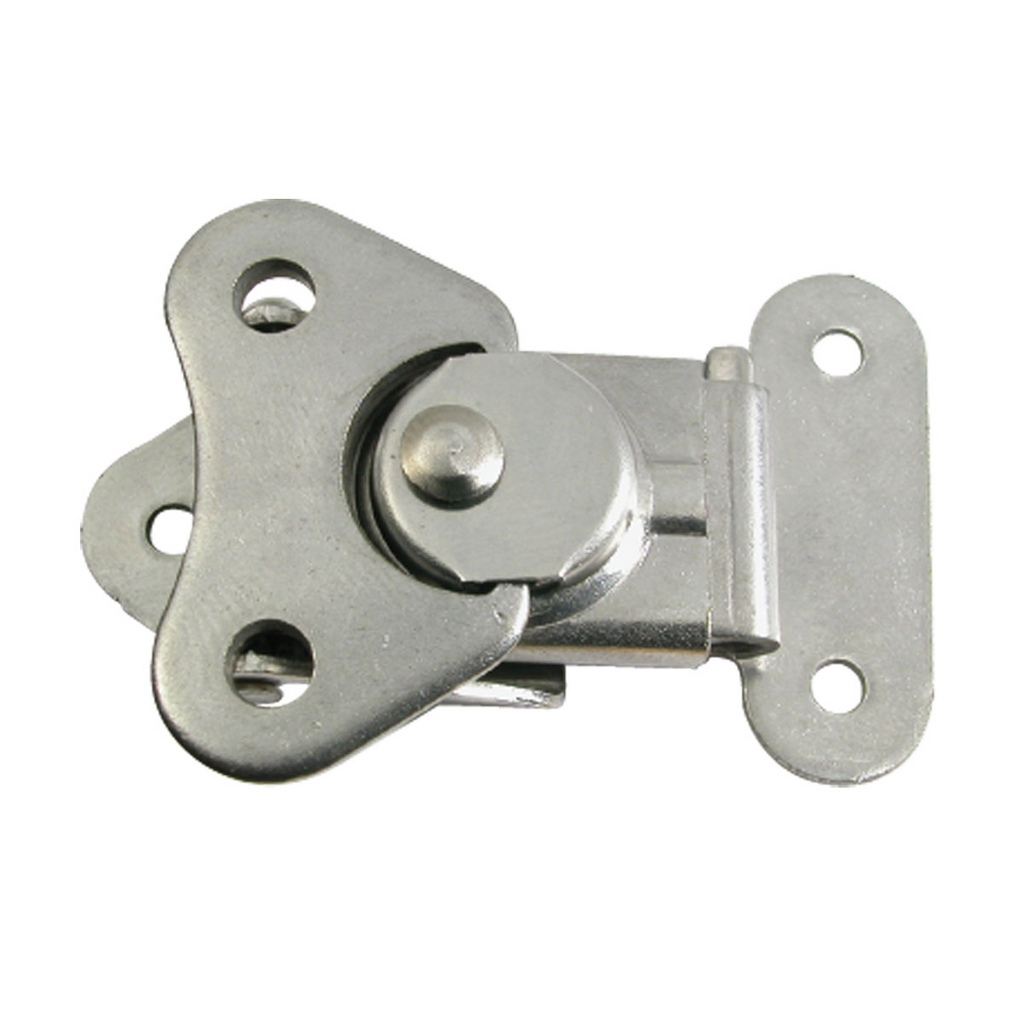

Positive twist lock action catches. Twist handle folds flat when not in use. Supplied with keeper. Ideal for lockers, hatches and in-line covers. All stainless steel construction. 193328 incorporates a tension spring to maintain fastened pressure and/or allow for movement.
| BLA CODE | STYLE | OVERALL LENGTH MM | WIDTH MM | HEIGHT MM | MOUNT SCREWS MM |
|---|
| 193320 | Non-lockable | 58 | 38 | 15 | 3 r/h |

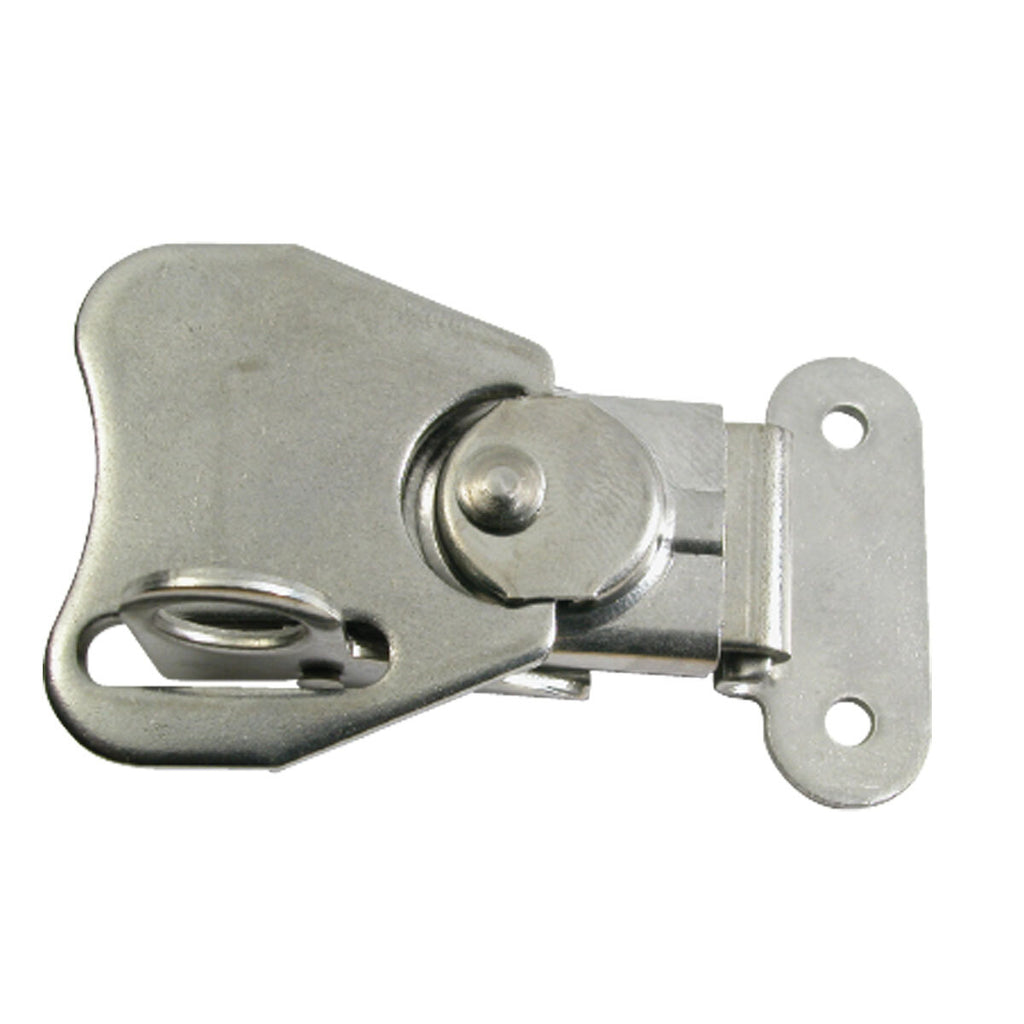

| 193322 | Lockable | 62 | 38 | 24 | 3 r/h |
| 193324 | Non-lockable | 50 | 38 | 15 | 3 r/h |

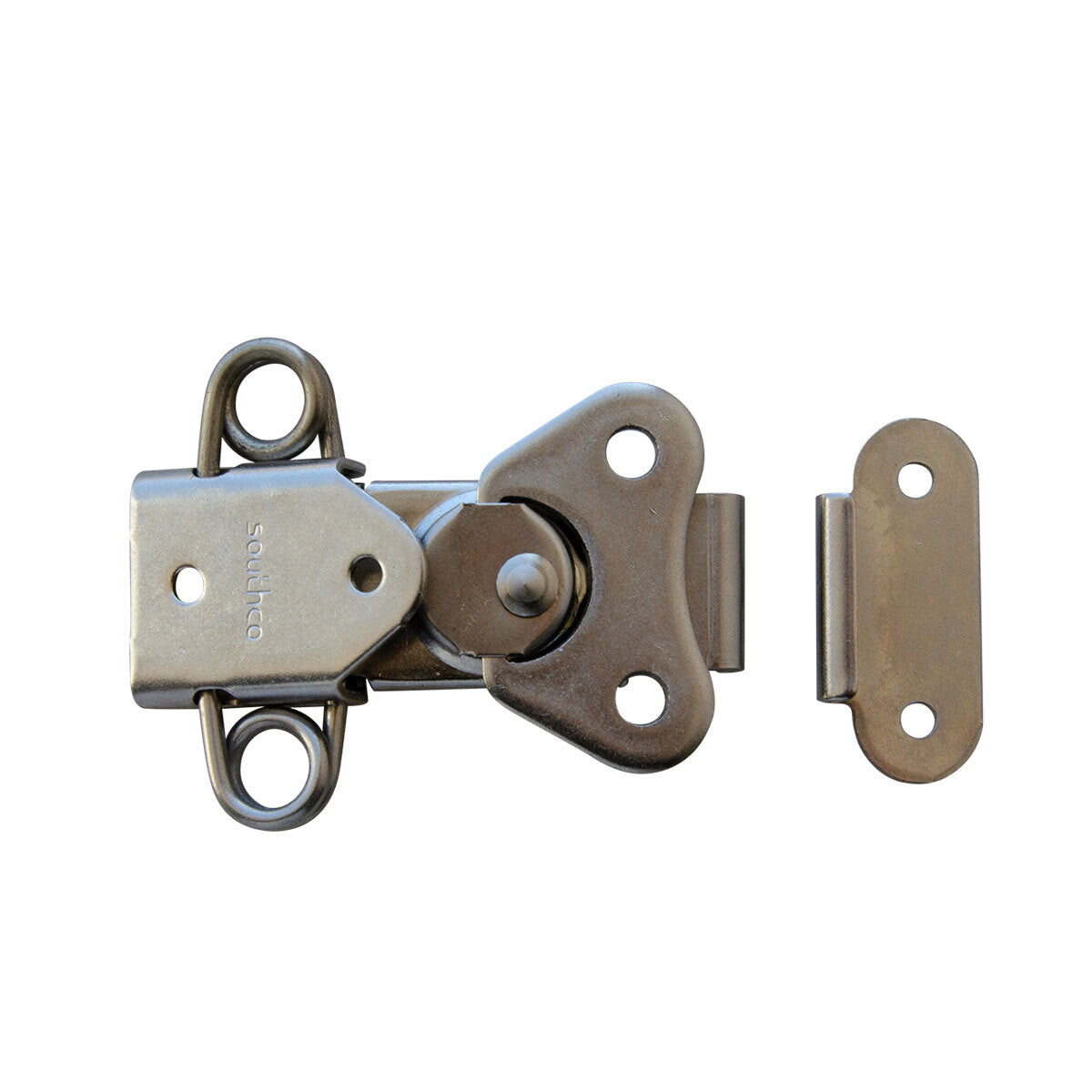

| 193328 | Spring loaded | 60 | 47 | 15 | 3 r/h |
