Description

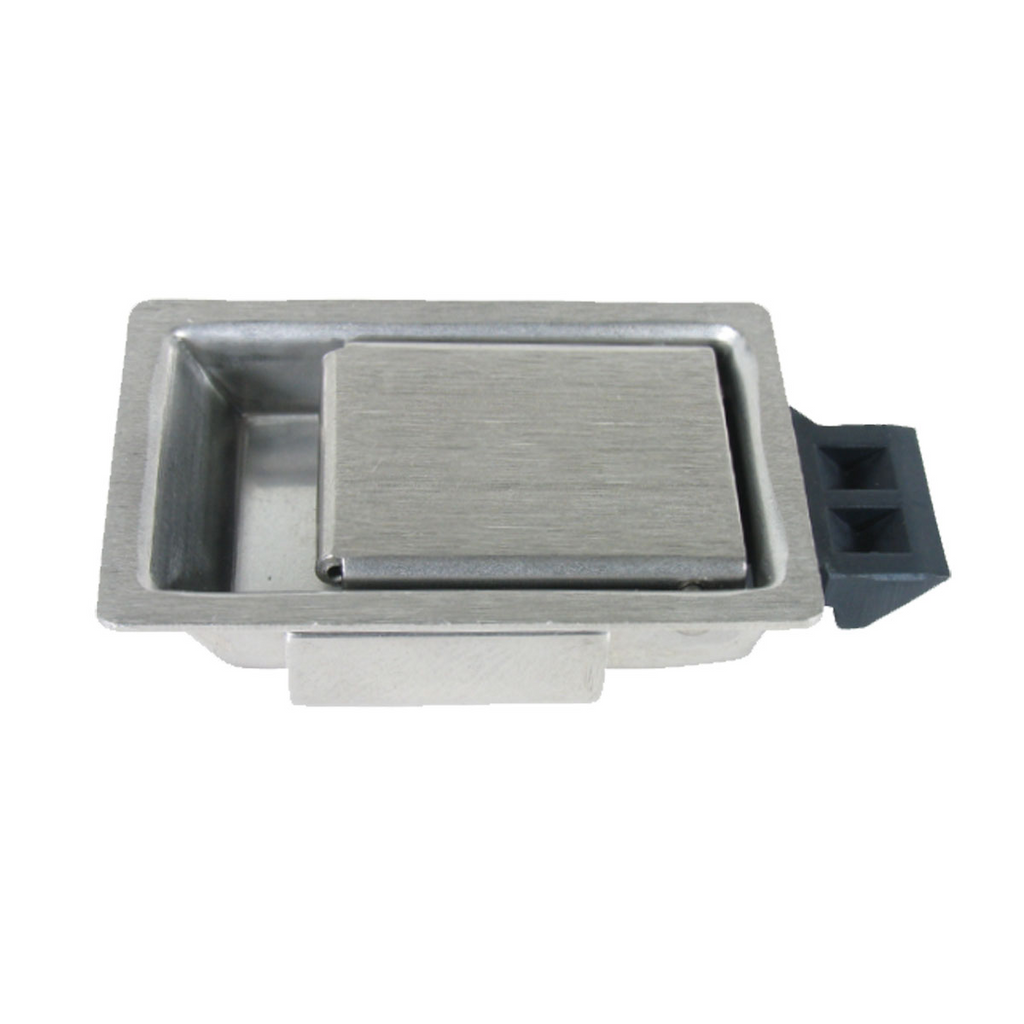

Attractive brushed stainless steel. Flush styling. Smooth push-to-close latching, pull paddle to open. Quick one screw mounting. Spring loaded paddle that won't rattle. Made from 304 grade stainless steel, aluminium and polyester thermoplastic.
| BLA CODE | FACE SIZE MM | CUT OUT MM | INTRUSION MM | PANEL THICKNESS MAX. MM | A MM | B MM |
|---|
| 193184 | 28 x 43 | 25 x 38 | 13 | 2 | 12.5 | 4 |
| 193186 | 68 x 84 | 54 x 70 | 36 | 6.4 | 15 | 7.5 |
