Description
All Savwinch Drum Winches feature a sealed motor and gearbox with a 316 grade stainless steel drum and body to protect from water ingress and corrosion and come complete with double braid rope, chain and switchgear for hassle free anchoring.
Features
• Motor is fully sealed from corrosion/water. No exposed terminals
• Custom rope kits available to suit any anchoring depth
• Australian designed
• Motor & gearbox can be adjusted in up to 12 positions to drum
• Retailed packaged

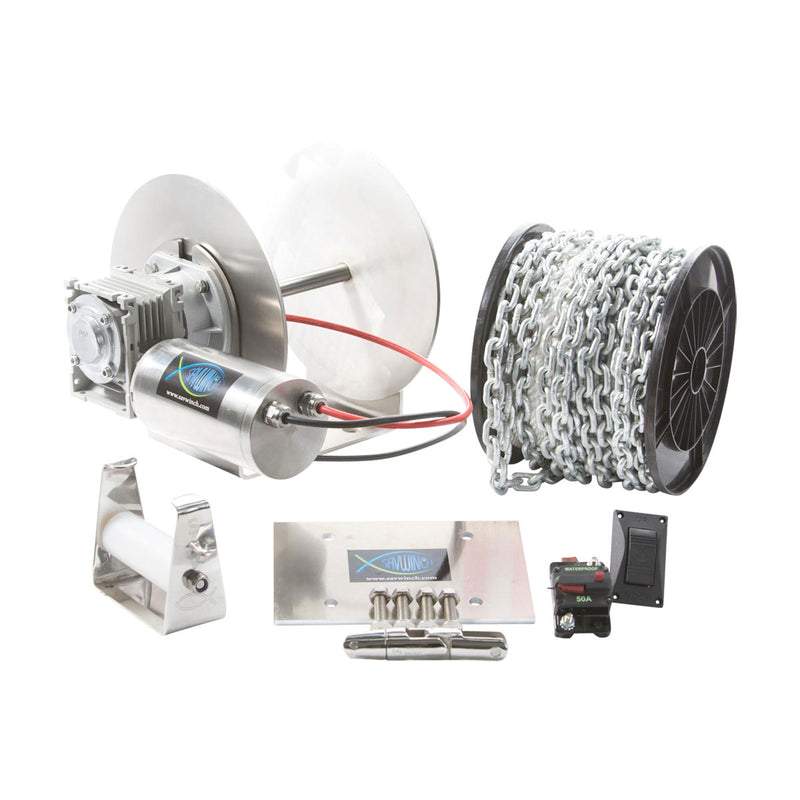

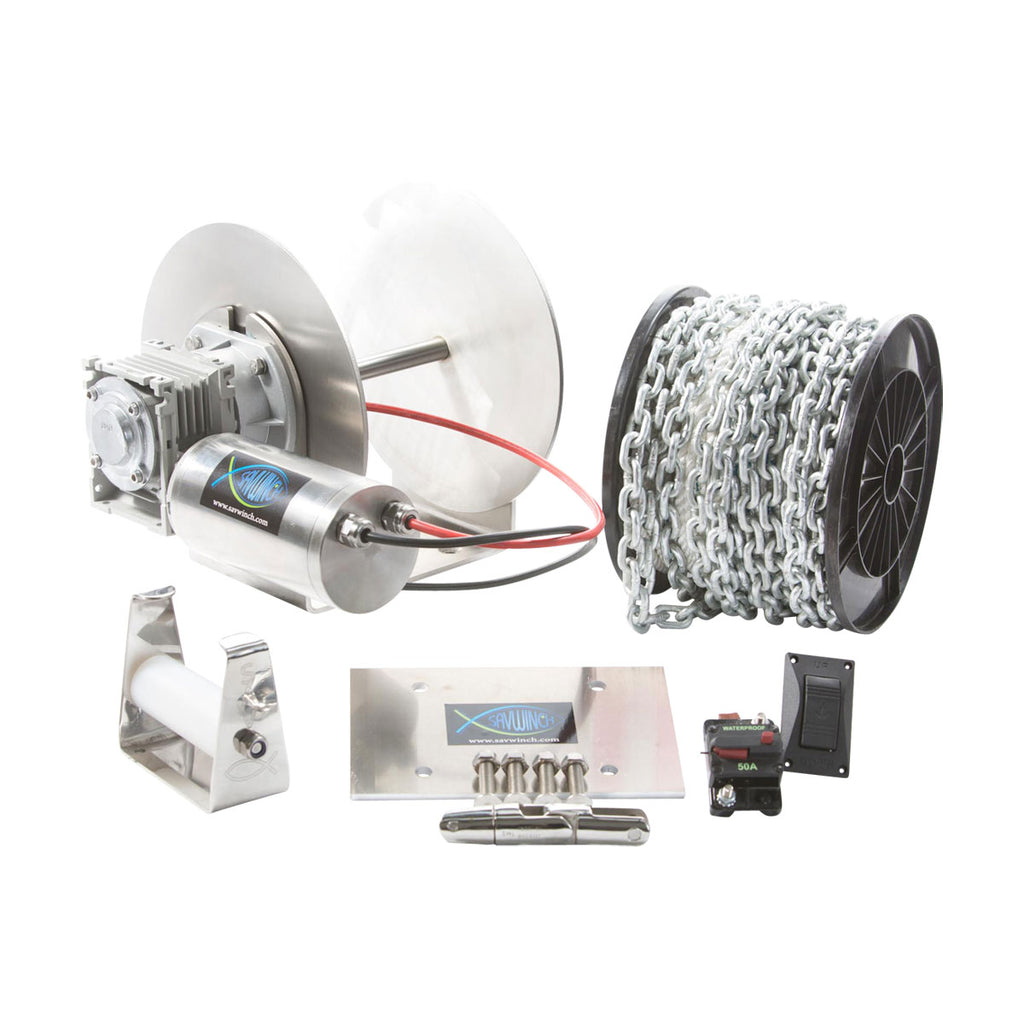

880/1000/1500/2000 Kit Includes
•Savwinch Drum Winch
• Up/Down Switch
• Solenoid
• Circuit Breaker
• Rope and Chain Kit
• Backing Plate & Bolts*
• Guide Roller*
• Anchor Swivel
3000/4000 Kit Includes
• Savwinch Drum Winch
• Up/Down Switch
• Solenoid
• Circuit Breaker
• Rope and Chain kit

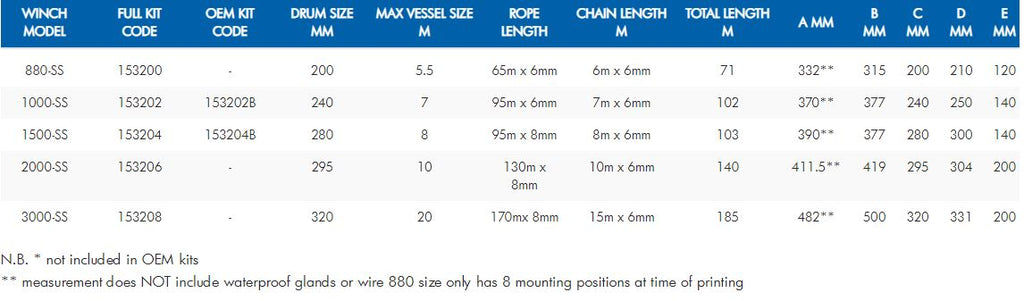

| Winch Model | Full Kit Code | OEM Kit Code | Drum Size mm | Max Vessel Size m | Rope Length | Chain Length m | Total Length m | A mm | B mm | C mm | D mm | E mm | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 880-SS | 153200 | - | 200 | 5.5 | 65m x 6mm | 6m x 6mm | 71 | 332** | 315 | 200 | 210 | 120 | ||||||||||||
| 1000-SS | 153202 | 153202B | 240 | 7 | 95m x 6mm | 7m x 6mm | 102 | 370** | 377 | 240 | 250 | 140 | ||||||||||||
| 1500-SS | 153204 | 153204B | 280 | 8 | 95m x 8mm | 8m x 6mm | 103 | 390** | 377 | 280 | 300 | 140 | ||||||||||||
| 2000-SS | 153206 | - | 295 | 10 | 130m x 8mm | 10m x 6mm | 140 | 411.5** | 419 | 295 | 304 | 200 | ||||||||||||
| 3000-SS | 153208 | - | 320 | 20 | 170mx 8mm | 15m x 6mm | 185 | 482** | 500 | 320 | 331 | 200 |
