Description
All BLA Drum Winches feature a sealed motor and gearbox with a 316 grade stainless steel drum and body to protect from water ingress and corrosion and comes complete with double braid rope, chain and switchgear for hassle free anchoring.
Features
• Motor is fully sealed from corrosion/water. No exposed terminals
• Custom rope kits available to suit any anchoring depth
• 3 year warranty – Australian designed
• Motor & gearbox can be adjusted in 12 positions to drum
• Retailed packaged

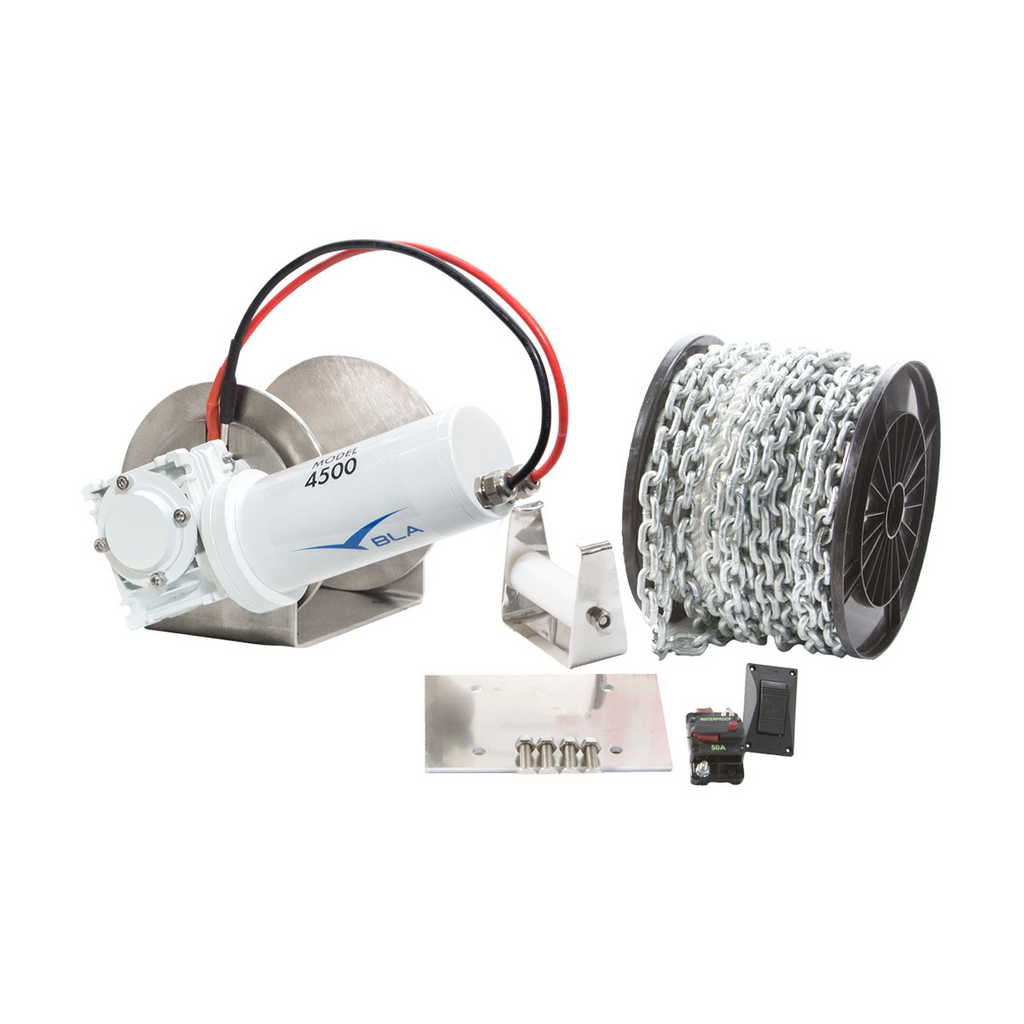

153100 Kit Includes
• Motor and gearbox
• 316 Grade stainless steel drum
• Backing plate and bolts
• Pre-wired switchgear
• Wiring loom kit
• Double braid rope and chain kit
153110, 153120 & 153130 Kit Includes
• Motor and gearbox
• 316 Grade stainless steel drum
• Up/down solenoid switch
• Circuit breaker
• Double braid rope and chain kit
• Backing plate and bolts
• Guide roller

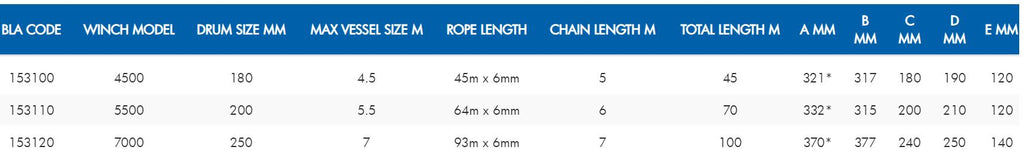

| BLACode | Winch Model | Drum Size mm | Max Vessel Size m | Rope Length | Chain Length m | Total Length m | A mm | B mm | C mm | D mm | E mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 153100 | 4500 | 180 | 4.5 | 45m x 6mm | 5 | 45 | 321* | 317 | 180 | 190 | 120 | |||||||||||
| 153110 | 5500 | 200 | 5.5 | 64m x 6mm | 6 | 70 | 332* | 315 | 200 | 210 | 120 | |||||||||||
| 153120 | 7000 | 250 | 7 | 93m x 6mm | 7 | 100 | 370* | 377 | 240 | 250 | 140 |
