Description

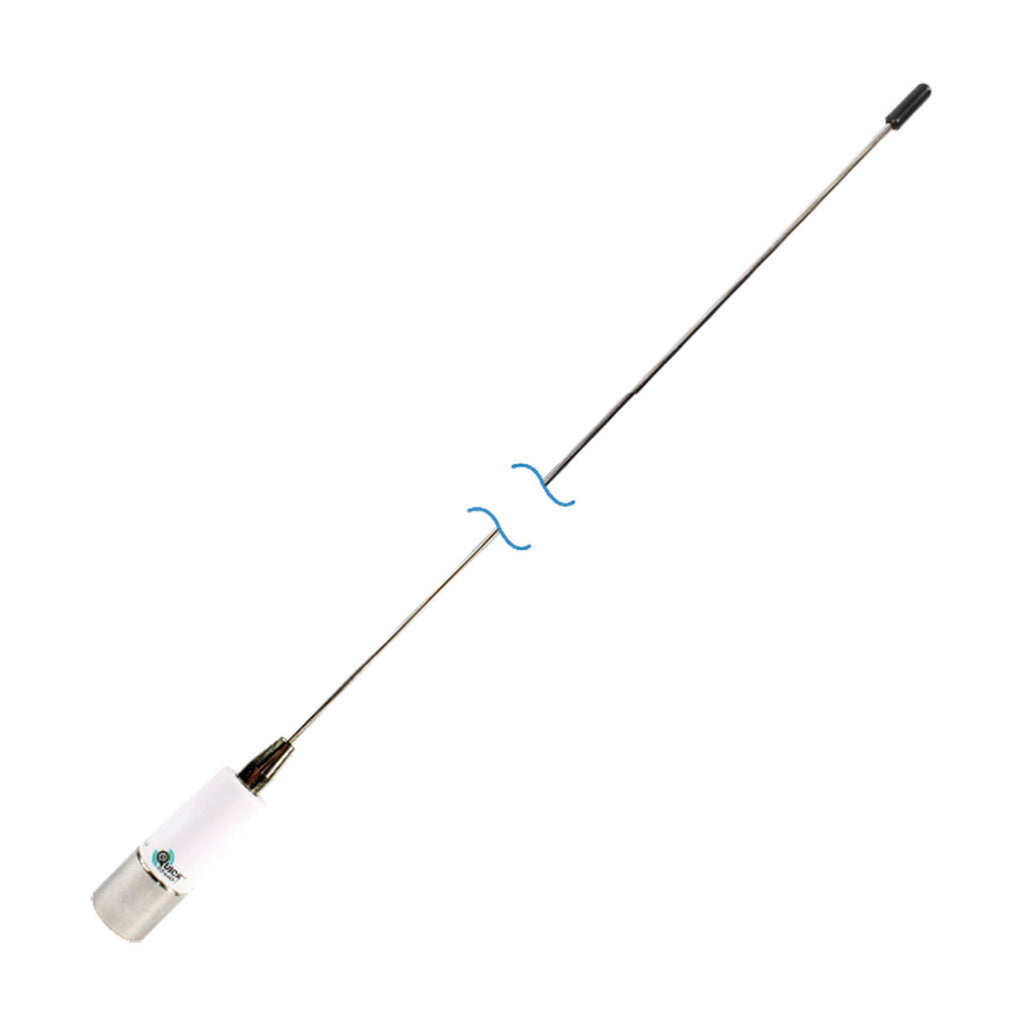

Stemming from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas, the new QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas. All QuickConnect™ aerials must be used with a QuickConnect™ base. All bases come with a 4.5m (15ft) cable.
Features
QuickConnect™ system, screw or unscrew antenna to disconnect or connect
High quality connection so that no noise is generated due to vibrations
Splash protection cap to protect the connector on the mount when antenna is disconnected
Centerpin® PL-259 Connector is an easy crimp-on type connector
Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount
Chrome plated brass ferrule
Stainless steel whip / white plastic body
50-ohm impedance
2 year limited warranty
BLA CodeMax. Power Input WattsSWR Nominally MHzBandwidthFrequency
BLA Code
Max. Power Input Watts
SWR Nominally MHz
Bandwidth
Frequency
119322501.3:1 at 156.85 MHz within 2.0:1 VSWRVHF Marine Band
Accessories
119354 QuickConnect Ratchet Mount - Ratchet Mount
119362 QuickConnect Rail Mount - Ratchet Rail Mount
119356 QuickConnect SS Ratchet Mount - Stainless Steel Ratchet Mount
