Description

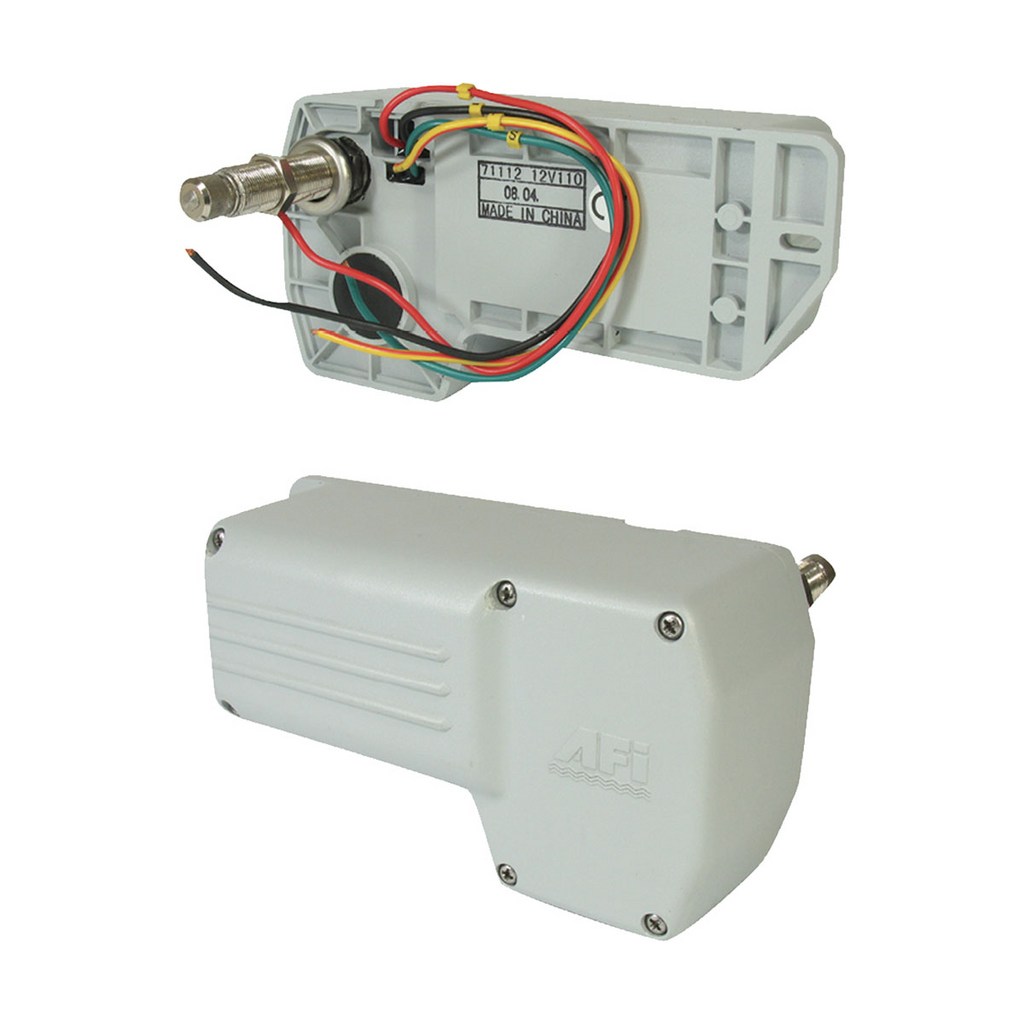

Fully sealed powder coated aluminium waterproof base and housing, powers up to 500mm sweeps.
Features
Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
Factory pre set sweep angles of 110º, with easy adjustment to 45º, 60º or 80º
Coast to park with adjustable right or left self parking
M16 mm diameter shaft (5/8″)
Two speed motor
Sealed 150mm, 16AWG wire leads, with RF shielded circuitry
Stall torque 125 kgf/cm; 12.3 Nm (109 in - lbs)
Stall current 11.5-13 amps at 12V
No load current 0.5-1.2 amps at 12V
Available in 23mm (12V only) and 50mm effective shaft lengths
3 year warranty
BLA CodeVoltsMotor Length mmMotor Depth mmMotor Width mmThread Shaft Length mmOverall Shaft Length mm
1160881219770.2810150 x 1665
